Braytron EXIT LED 3W MA HNG IP20 WHT Emergency Exit

Braytron EXIT-LED-3W-MA-HNG-IP20-WHT-EMERGENCY EXIT BRYBC14-01100

General Characteristics

• Model No: BC14-01100
• Main Family: Rechargeables
• Sub Family: Exit Lamp
• Type: Exit Sign
• Body Color: White
• Lamp Shape: N/A
• Dimmable: Not-Dimmable
• Light Source: LED
• Class: Class II
• IP: IP20

Product Characteristics

• Wattage: 2 w
• Color Temperature: Green
• Quse Lumen: 150 lm
• Beam Angle: 120° Degrees

Electrical Characteristics

• Lifetime: 20000 h (For LED)
• Voltage: 220-240V
• Power Factor: >0,5
• Material: ABS
• Working Temperature: -20 C+40 C
• Frequency: 50-60 Hz
• Working Time: 3 h

Battery Informations

• Battery: 1,2V 1000 mAh Ni-mh Battery
• Emergency Mode: Maintained
• Charging Type: AC
• Charging Time: 24 h
• View Distance: 25 m
• Number Of Charging Cycles: 1000

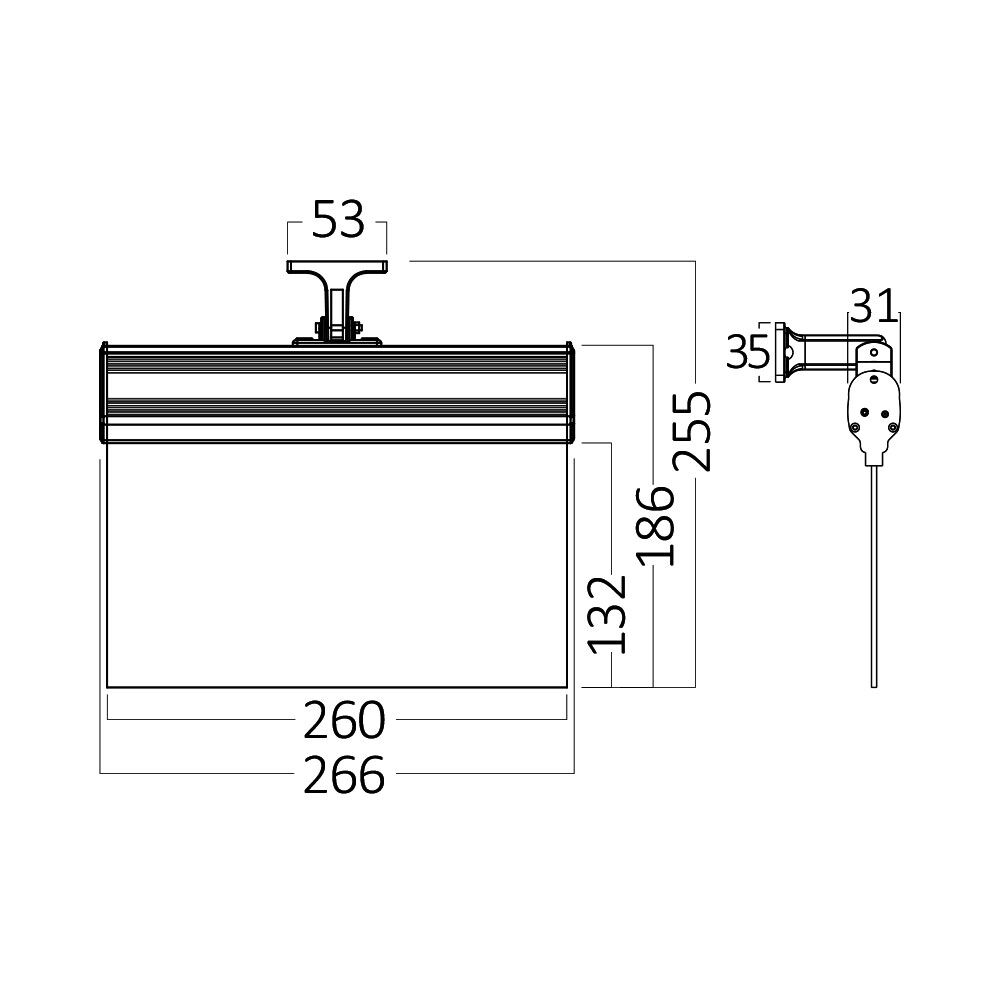

Dimensions & Weight

• P. Length: 266 mm
• P. Width: 53 mm
• P. Height: 255 mm
• Weight: 355 gr

Datablad

Conformiteitsverklaring

EMC Report

LVD Report

5949097704055
