Braytron EXIT LED DUAL 5W IP65 WHT Emergency Exit

Braytron EXIT-LED-DUAL-5W-IP65-WHT-EMERGENCY EXIT BRYBC14-00900

General Characteristics

• Model No: BC14-00900
• Main Family: Rechargeables
• Sub Family: Exit Lamp
• Type: Exit Sign
• Body Color: White
• Lamp Shape: N/A
• Dimmable: Not-Dimmable
• Light Source: LED
• Class: Class II
• IP: IP65
• IK: IK07

Product Characteristics

• Wattage: 5 w
• Color Temperature: 6500K
• Quse Lumen: 350 lm
• Color Rendering Index (CRI): >70
• Beam Angle: 120° Degrees
• Color Category: Cool White

Electrical Characteristics

• Lifetime: 20000 h (For LED)
• Voltage: 220-240V
• Power Factor: >0,5
• Material: ABS
• Working Temperature: -20 C+40 C
• Frequency: 50-60 Hz
• Working Time: 3 h

Battery Informations

• Battery: 3,7V 2200 mAh Lithium Battery
• Emergency Mode: Dual (Non-Maintaned, Maintaned)
• Charging Type: AC
• Charging Time: 24 h
• View Distance: 25 m
• Number Of Charging Cycles: 1000

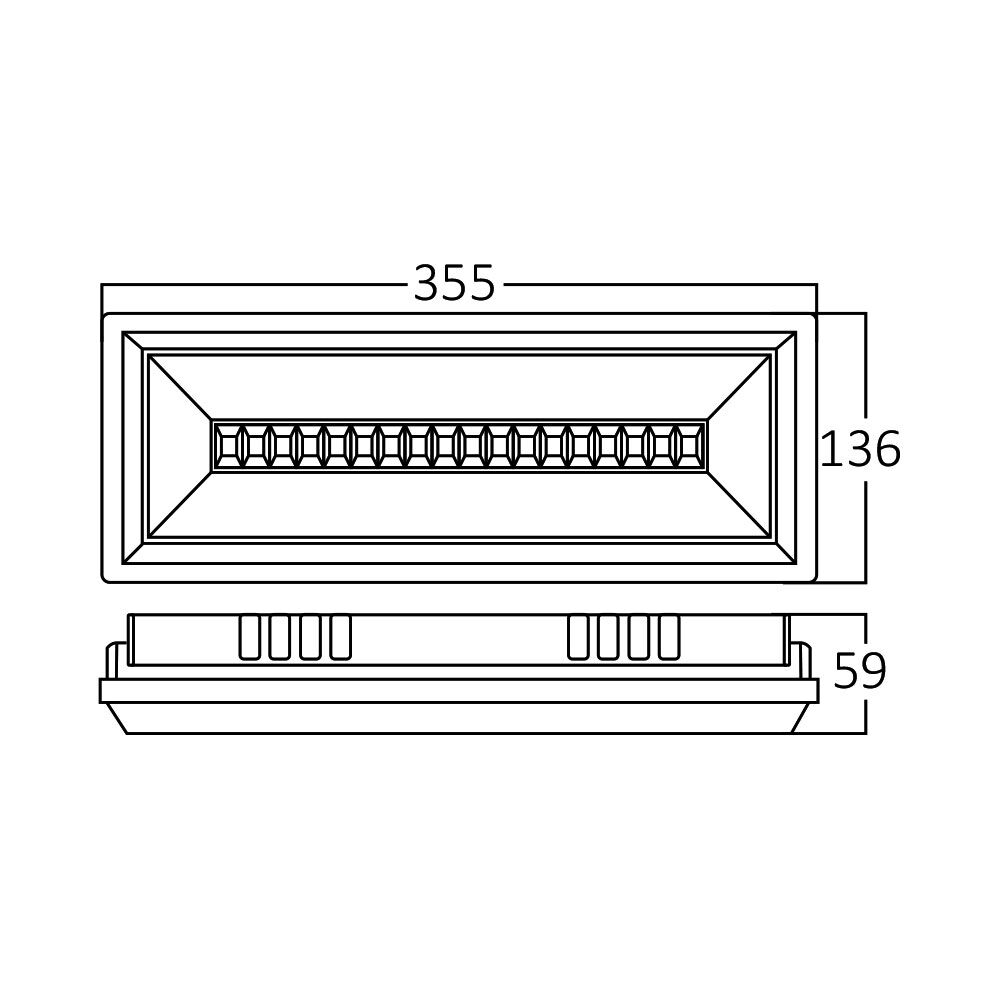

Dimensions & Weight

• P. Length: 355 mm
• P. Width: 136 mm
• P. Height: 59 mm
• Weight: 630 gr

Datablad

Conformiteitsverklaring

EMC Report

LVD Report

5949097710087
