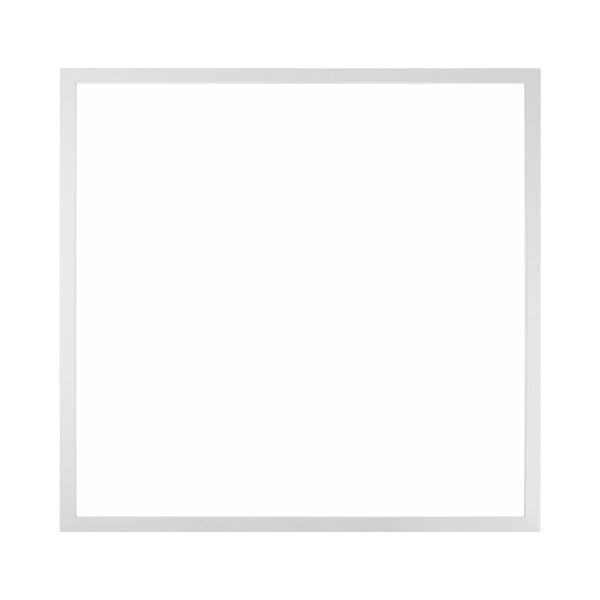

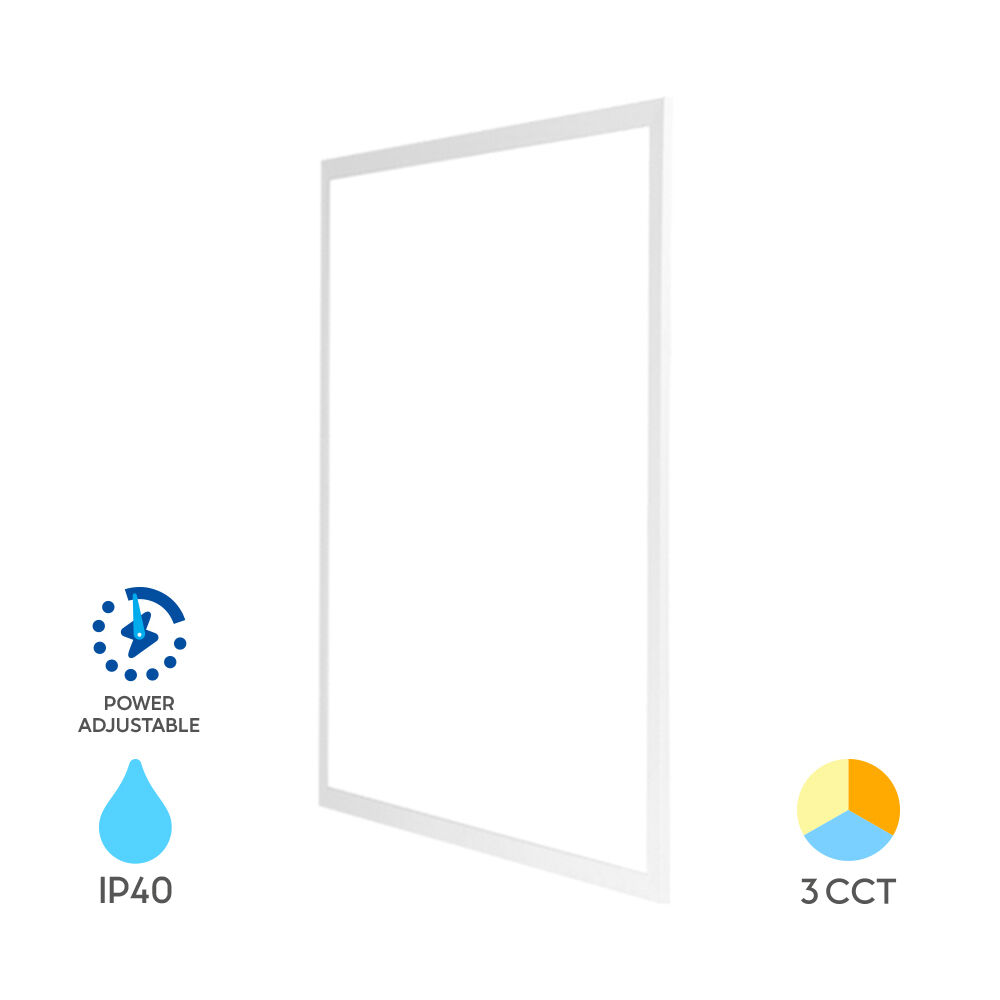

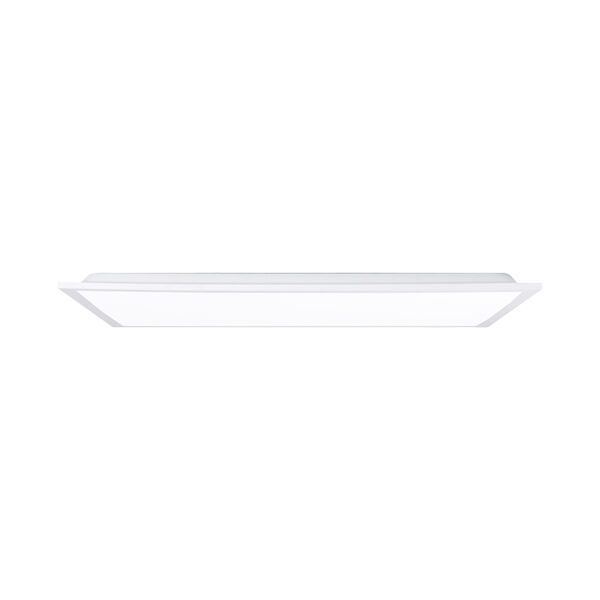

Braytron 40W 60x60 White 3in1 CCT LED Panel

Braytron 105096 40W-60x60-WHT- 3in1 CCT-LED PANEL BRYBP27-36680

General Characteristics

• Model No: BP27-36680
• Main Family: Indoor Lighting
• Sub Family: LED Big Panel
• Type: Recessed Panel
• Body Color: White
• Lamp Shape: Non-Directional
• Dimmable: Not-Dimmable
• Light Source: LED
• Class: Class I
• IP: IP40

Product Characteristics

• Wattage: 40 w
• Color Temperature: 3IN1
• Quse Lumen: 5200 lm
• Color Rendering Index (CRI): >80
• Energy Efficiency Level: E
• Beam Angle: 110° Degrees
• Color Category: 3IN1

Electrical Characteristics

• Lifetime: 25000 h
• Voltage: 220-240V
• Power Factor: >0,9
• Material: Metal
• Working Temperature: -20 C+40 C
• Frequency: 50-60 Hz

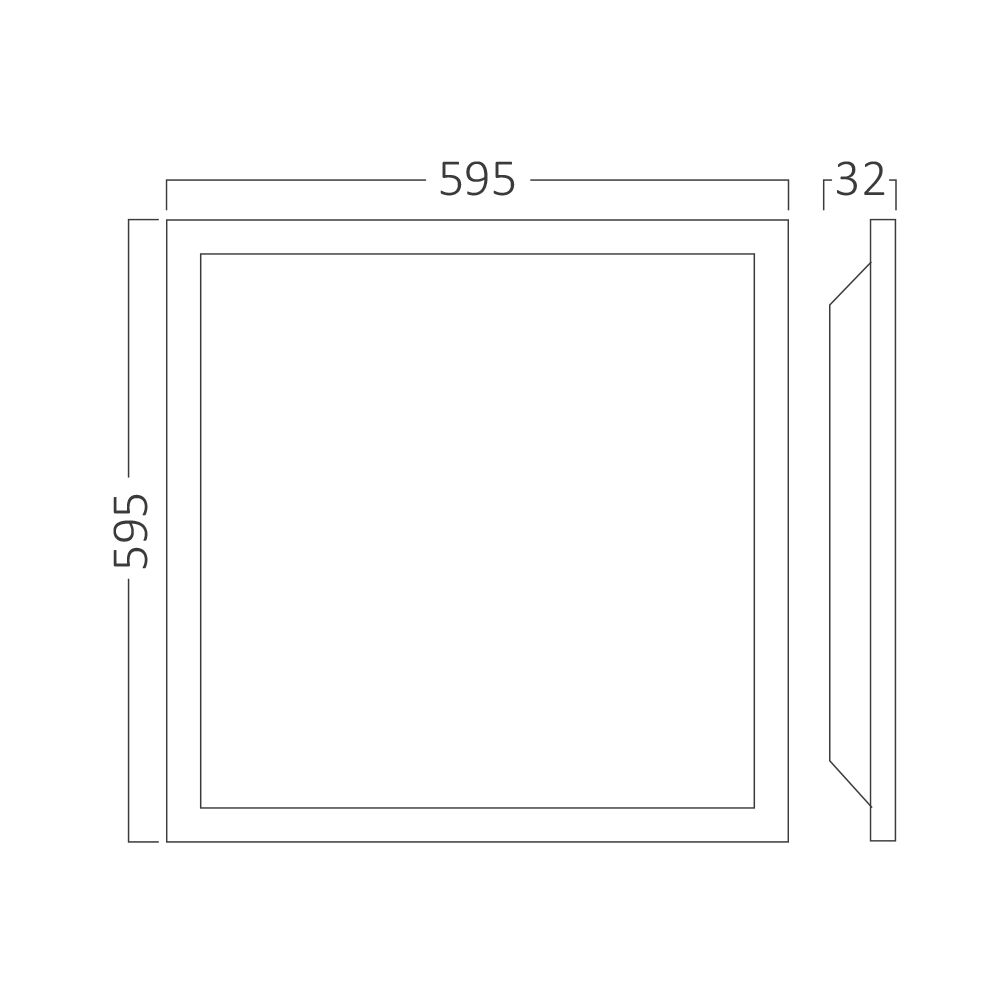

Dimensions & Weight

• P. Length: 595 mm
• P. Width: 595 mm
• P. Height: 32 mm
• Weight: 1400 gr

Datablad

Conformiteitsverklaring

EMC Report

LVD Report

5949097742637
