Braytron 20W CEILING LIGHT 4IN1 MICRO. SENSOR IP54 EMERG. KIT

Braytron 102168 -20W CEILING LIGHT 4IN1 MICRO. SENSOR IP54 EMERG. KIT BRYBC15-00580

General Characteristics

• Model No: BC15-00580
• Main Family: Indoor Lighting
• Sub Family: Sensor Fixtures
• Type: Ceiling Light
• Body Color: White
• Lamp Shape: Non-Directional
• Dimmable: Not-Dimmable
• Light Source: LED
• Class: Class II
• IP: IP54
• IK: IK07

Product Characteristics

• Wattage: 20 w
• Color Temperature: 5IN1
• Quse Lumen: 2000 lm
• Color Rendering Index (CRI): >80
• Beam Angle: 120° Degrees
• Color Category: 5IN1

Electrical Characteristics

• Lifetime: 20000 h
• Voltage: 220-240V
• Power Factor: >0,7
• Material: PC
• Working Temperature: -20 C+40 C
• Frequency: 50-60 Hz
• Working Time: 4 h

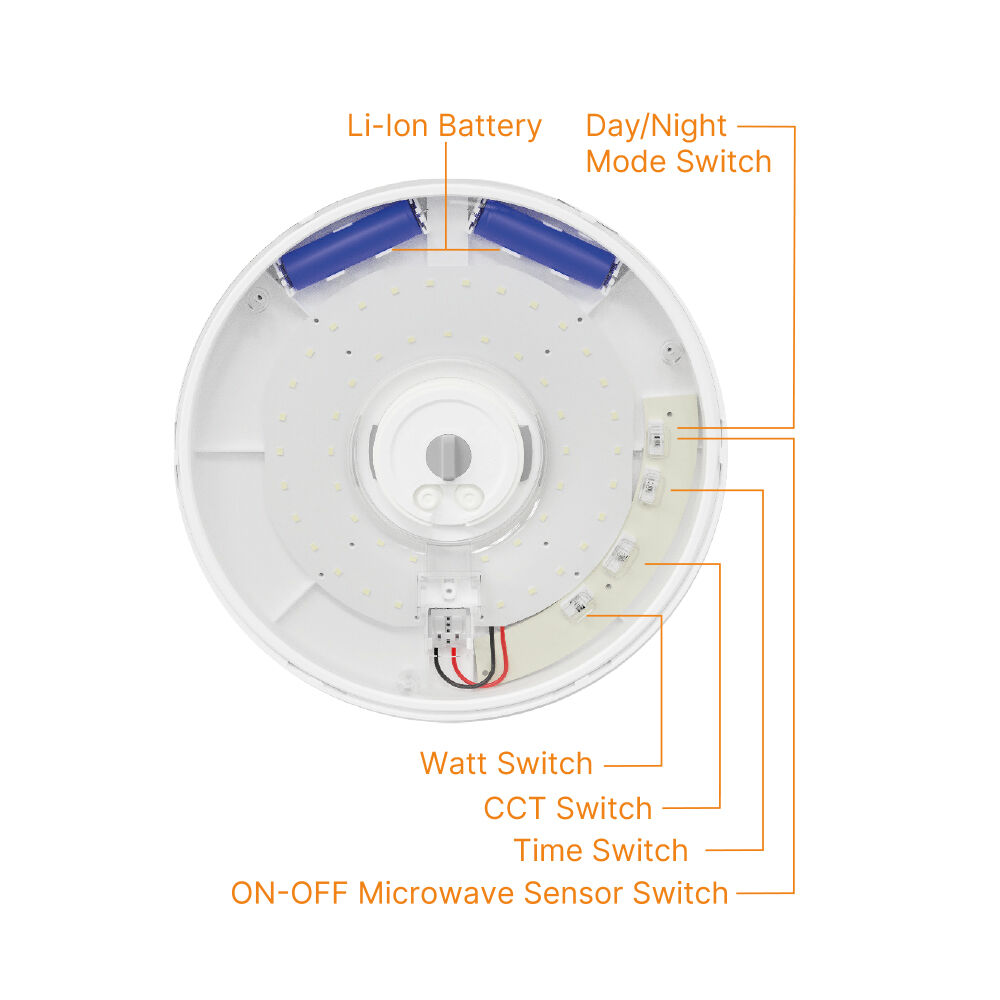

Battery Informations

• Battery: 2x1800mA 3.7V Li-ion
• Emergency Mode: Non-Maintained
• Charging Time: 8 h

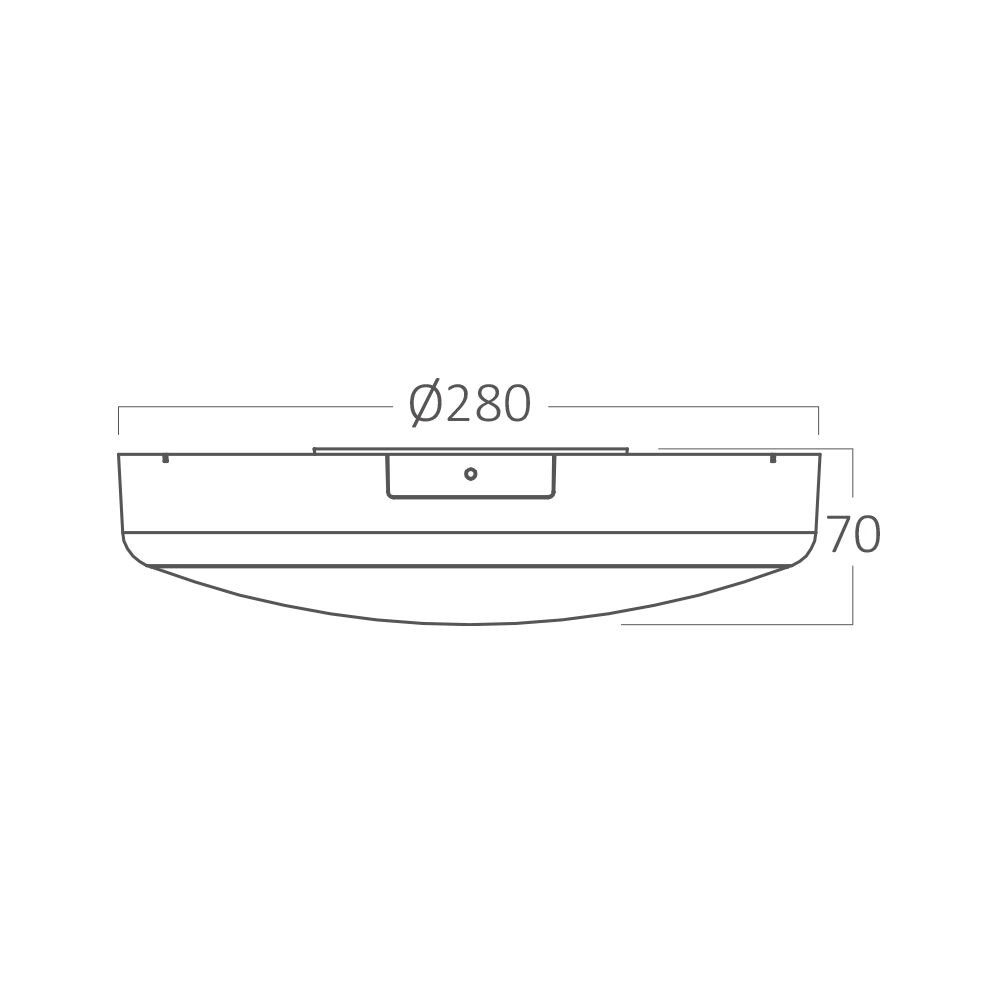

Dimensions & Weight

• Diameter: 280 mm
• P. Height: 70 mm
• Weight: 723 gr

Sensor Informations

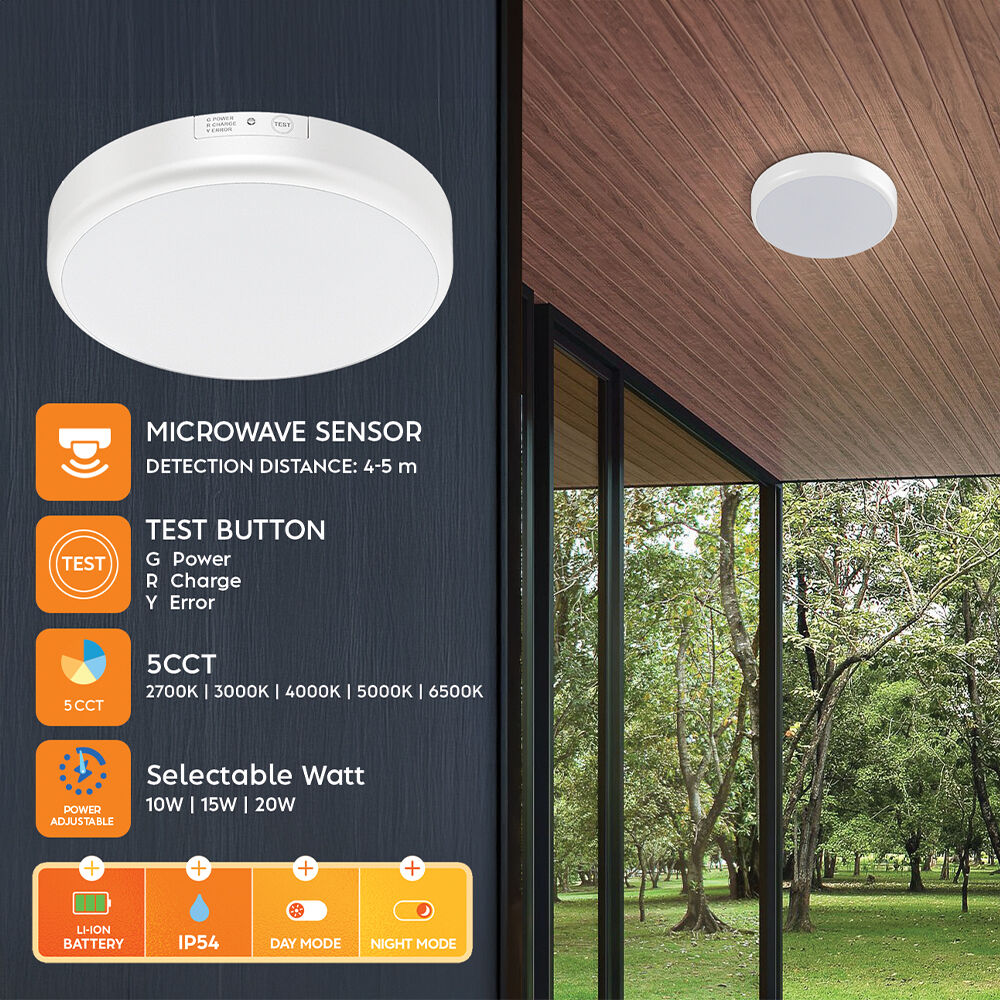

• Sensor Type: Microwave
• Detection Distance: 4-5 m
• Detection Angle: 180° Degrees
• Installation Height: 3m
• Time Delay: 30-60-120 sec (adjustable)
• Lux: <20 lux
