Braytron FLOOD PF 30W Grey 3IN1 SNS IP65 LED Floodlight

Braytron 102208-FLOOD-PF-30W-GRY-3IN1-SNS-IP65-LED FLOODLIGHT-BRY BRYBT65-23082

General Characteristics

• Model No: BT65-23082
• Main Family: Outdoor Lighting
• Sub Family: LED Floodlight
• Type: Floodlight
• Body Color: Grey
• Lamp Shape: Non-Directional
• Dimmable: Not-Dimmable
• Light Source: LED
• Class: Class I
• IP: IP65
• IK: IK06

Product Characteristics

• Wattage: 30 w
• Color Temperature: 3IN1
• Quse Lumen: 3300 lm
• Color Rendering Index (CRI): >80
• Energy Efficiency Level: E
• Beam Angle: 90° Degrees
• Color Category: 3IN1

Electrical Characteristics

• Lifetime: 20000 h
• Voltage: 220-240V
• Power Factor: >0,9
• Material: Aluminium
• Working Temperature: -20 C+40 C
• Frequency: 50-60 Hz

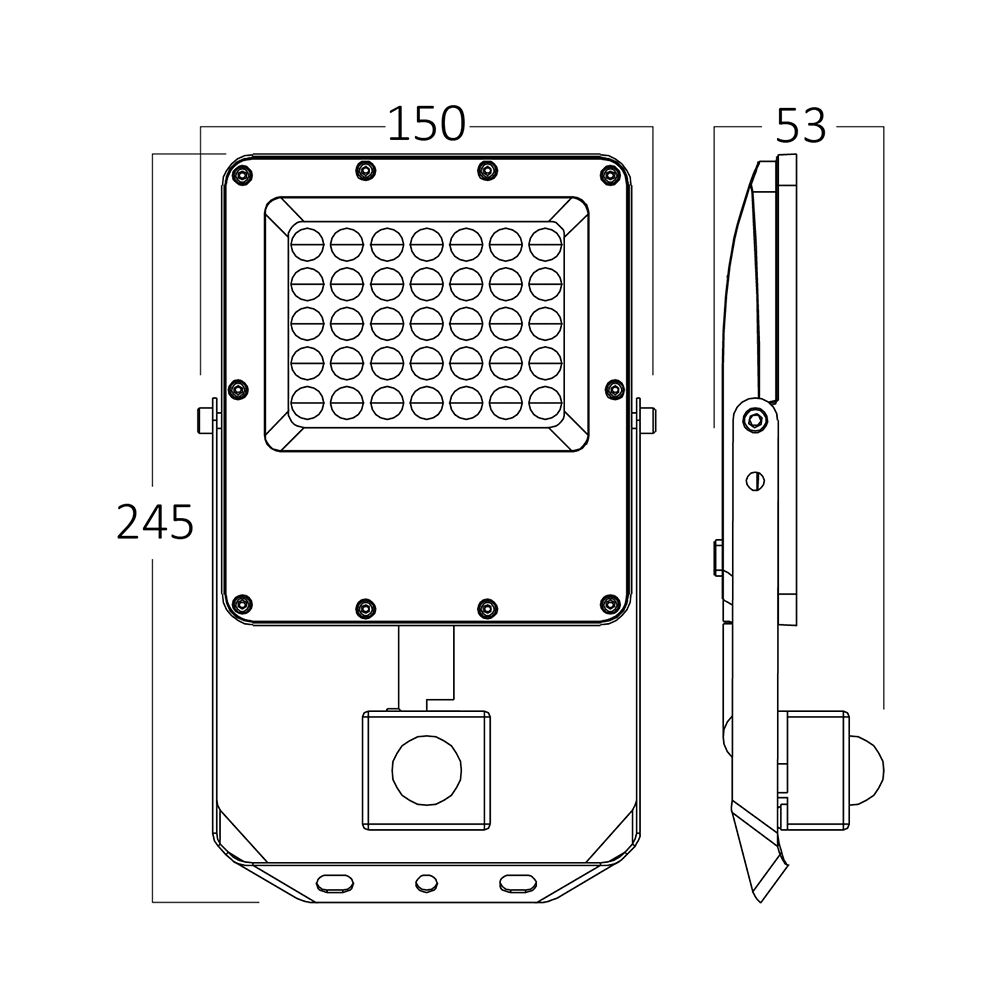

Dimensions & Weight

• P. Length: 245 mm
• P. Width: 53 mm
• P. Height: 150 mm
• Weight: 400 gr

Sensor Informations

• Sensor Type: Motion
• Detection Distance: 4m-10m (adjustable) (<24C)
• Detection Angle: 120° Degrees
• Detection Speed: 0,6-1,5m/s
• Installation Height: 1,8m-2,5m
• Time Delay: 10sec-10min (adjustable)
• Lux: 10-2000 lux

Datablad
