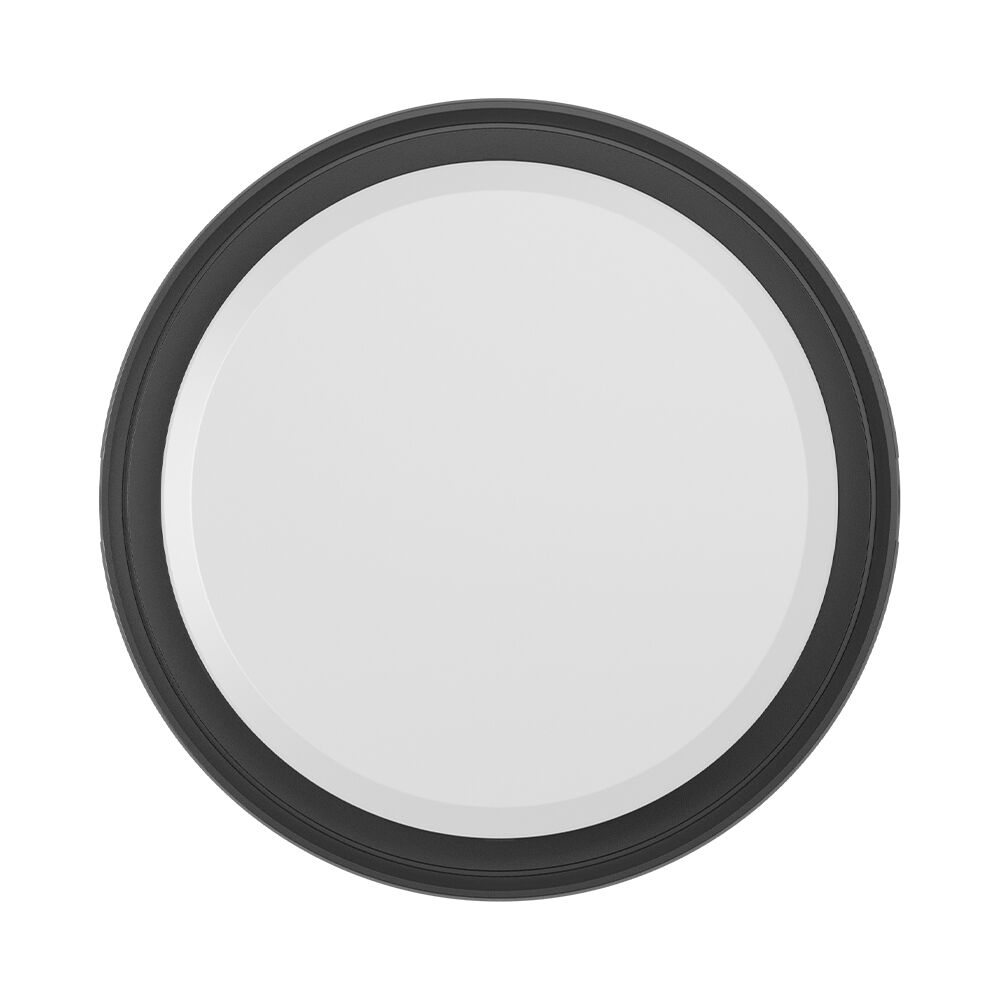

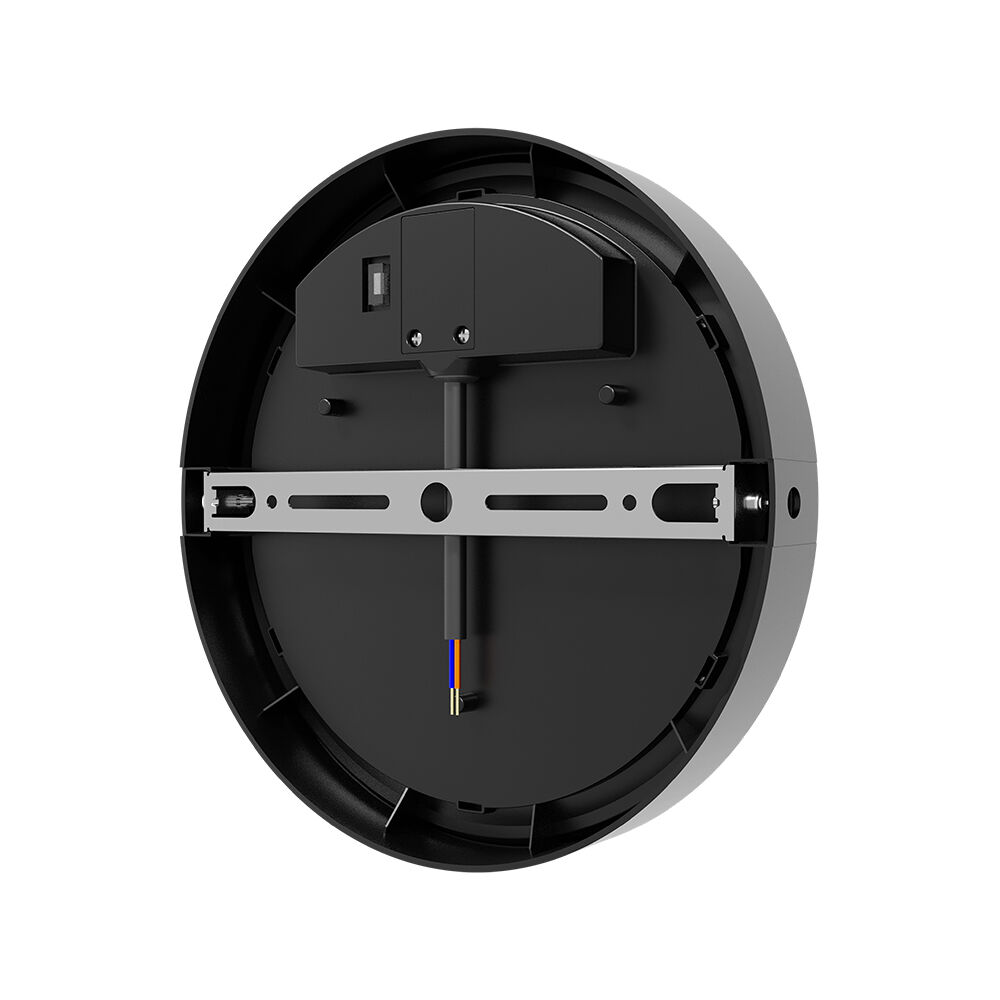

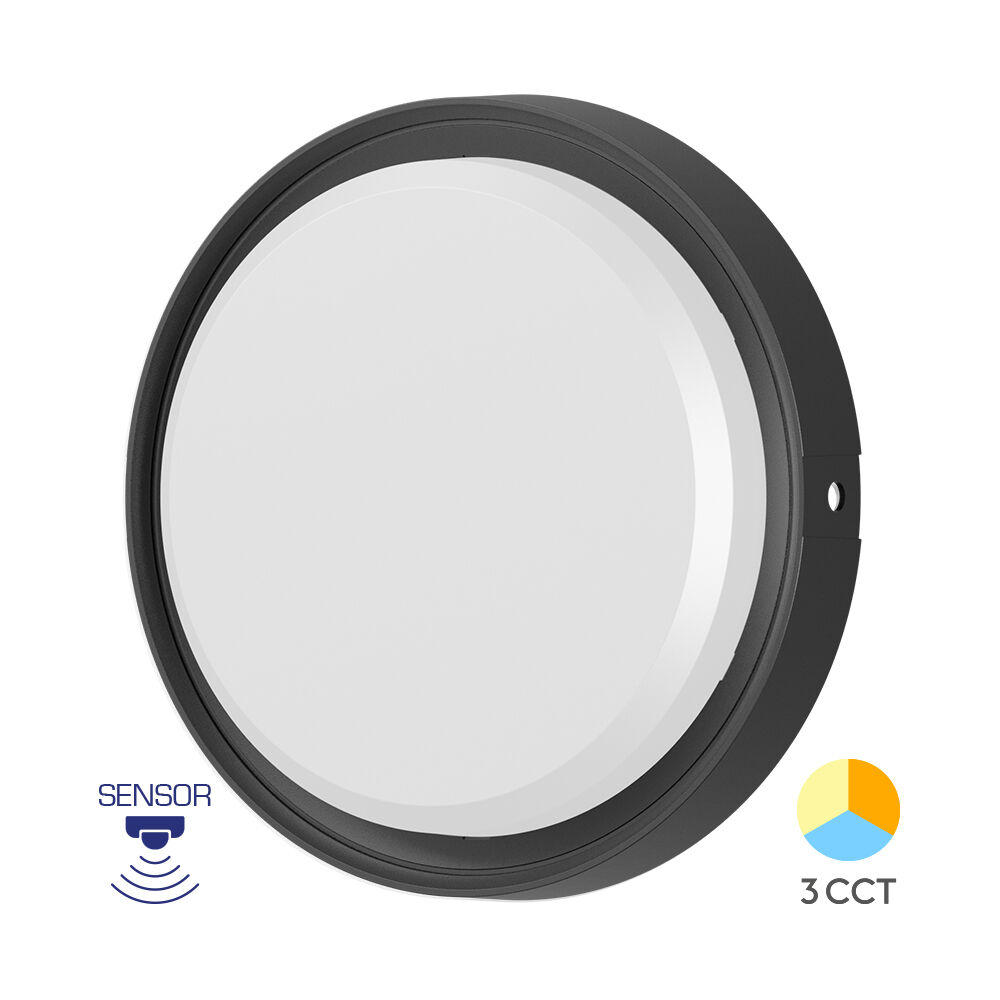

Braytron 18W RND Black SNS 3IN1 IP65 LED Bulkhead

Braytron 102269-BRY-BULKHEAD-18W-RND-BLC-SNS-3IN1-IP65-LED BULKHEAD BRYBC18-30781

General Characteristics

• Model No: BC18-30781
• Main Family: Outdoor Lighting
• Sub Family: LED Bulkhead
• Type: Bulkhead
• Body Color: Black
• Lamp Shape: Non-Directional
• Dimmable: Not-Dimmable
• Light Source: LED
• Class: Class II
• IP: IP65
• IK: IK06

Product Characteristics

• Wattage: 18 w
• Color Temperature: 3IN1
• Quse Lumen: 2020 lm
• Color Rendering Index (CRI): >80

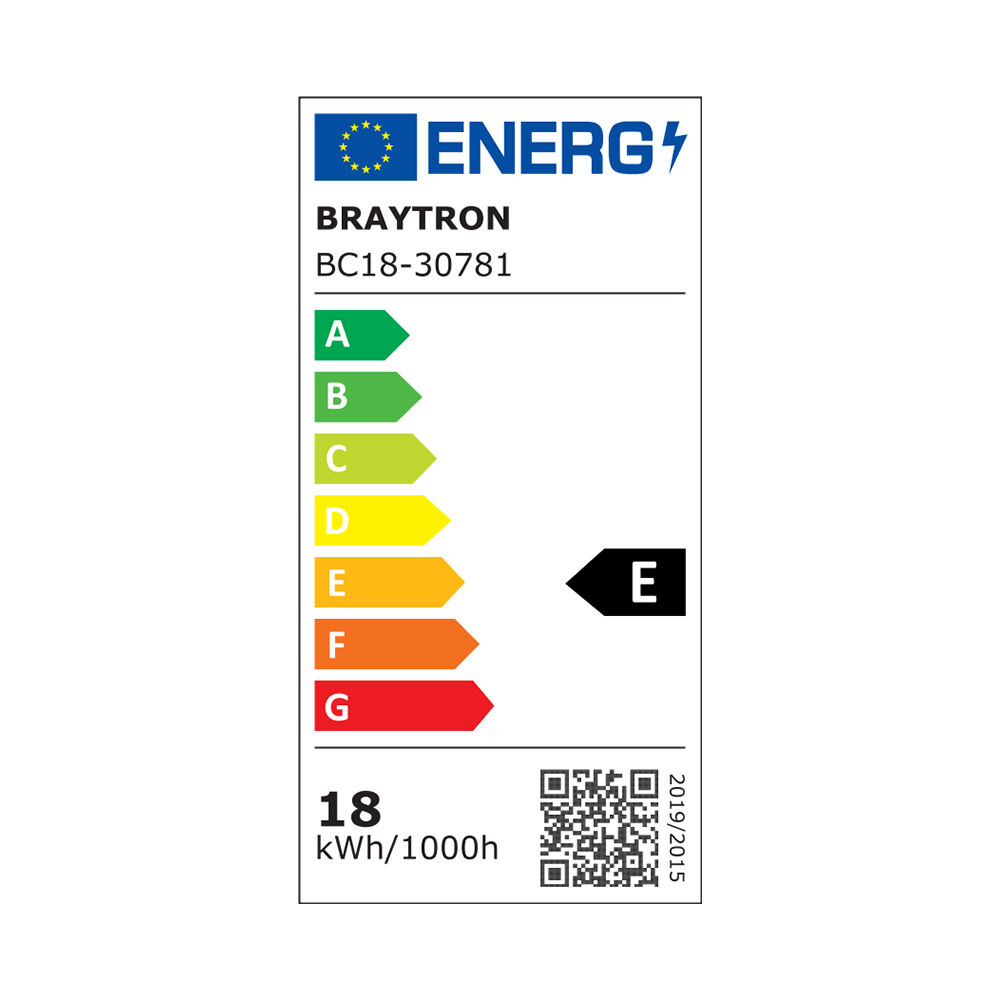

• Energy Efficiency Level: E
• Beam Angle: 120° Degrees
• Color Category: 3IN1

Electrical Characteristics

• Lifetime: 20000 h
• Voltage: 220-240V
• Power Factor: >0,5
• Material: PC
• Working Temperature: -20 C+40 C
• Frequency: 50-60 Hz

Dimensions & Weight

• Diameter: 222 mm
• P. Height: 48 mm
• Weight: 340 gr

Sensor Informations

• Sensor Type: Microwave
• Detection Distance: 6 m
• Detection Angle: 180° Degrees
• Installation Height: 3m-4m
• Time Delay: 120sec
• Lux: <15 lux
