Braytron SOLARIS W1 White 3W 6500K IP54 Solar Wall Light

Braytron 103272-BRY-SOLARIS-W1-WHT-3W-6500K-IP54-SOLAR WALL LIGHT BRYBG36-00130

General Characteristics

• Model No: BG36-00130
• Main Family: Solar Lighting
• Sub Family: Solar Wall Light
• Type: Solar
• Body Color: White
• Lamp Shape: N/A
• Dimmable: Not-Dimmable
• Light Source: LED
• Class: Class III
• IP: IP54

Product Characteristics

• Wattage: 3 w
• Color Temperature: 6500K
• Quse Lumen: 240 lm
• Color Rendering Index (CRI): >80
• Beam Angle: 120° Degrees
• Color Category: Cool White

Electrical Characteristics

• Lifetime: 20000 h
• Voltage: Solar Panel Energy
• Capacity Watt: 4,5 w
• Material: ABS
• Working Temperature: -20 C+40 C
• Working Time: 10 h

Battery Informations

• Battery: 18650 Li-lon Battery 3.7V 1200mA
• Charging Time: 12 h-15 h at 50.000 Lux

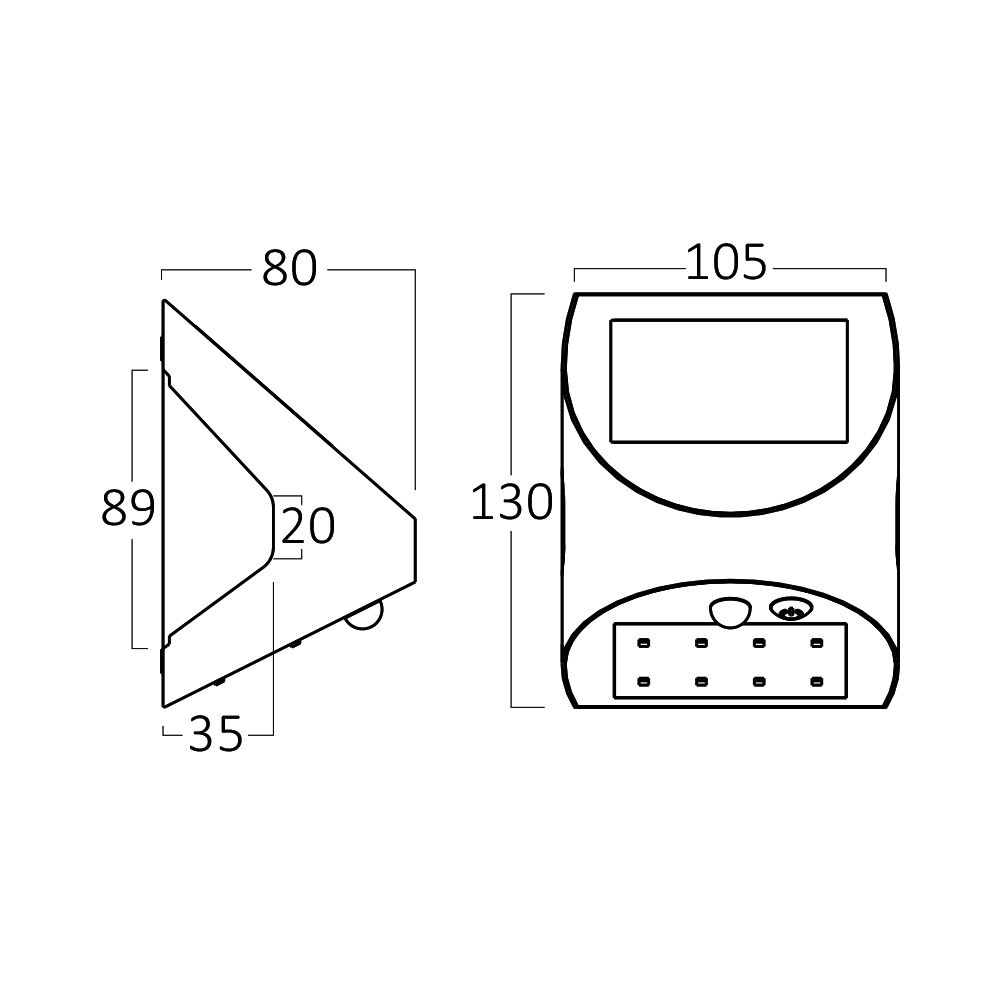

Dimensions & Weight

• P. Length: 130 mm
• P. Width: 105 mm
• P. Height: 80 mm
• Weight: 200 gr

Sensor Informations

• Sensor Type: Movement
• Detection Distance: 1m-5m
• Detection Angle: 120° Degrees
• Time Delay: 30sec
• Lux: 15 Lux

Solar Informations

• Solar Panel: 5,5V, 100mA
• Solar Power: 0,6w
