Braytron SMD CRP 4W RND DIM 3INC White 3IN1 LED Panel

Braytron 103281-SMD-CRP-4W-RND-DIM-3INC-WHT-3IN1-LED PANEL-BRY BRYBP01-90480

General Characteristics

• Model No: BP01-90480
• Main Family: Indoor Lighting
• Sub Family: LED Small Panel
• Type: Recessed Panel
• Body Color: White
• Lamp Shape: Non-Directional
• Dimmable: Dimmable
• Light Source: LED
• Class: Class II
• IP: IP40

Product Characteristics

• Wattage: 4 w
• Color Temperature: 3IN1
• Quse Lumen: 280 lm
• Color Rendering Index (CRI): >80
• Energy Efficiency Level: G
• Beam Angle: 120° Degrees
• Color Category: 3IN1

Electrical Characteristics

• Lifetime: 20000 h
• Voltage: 220-240V
• Power Factor: >0,7
• Material: PC
• Working Temperature: -20 C+40 C
• Frequency: 50-60 Hz

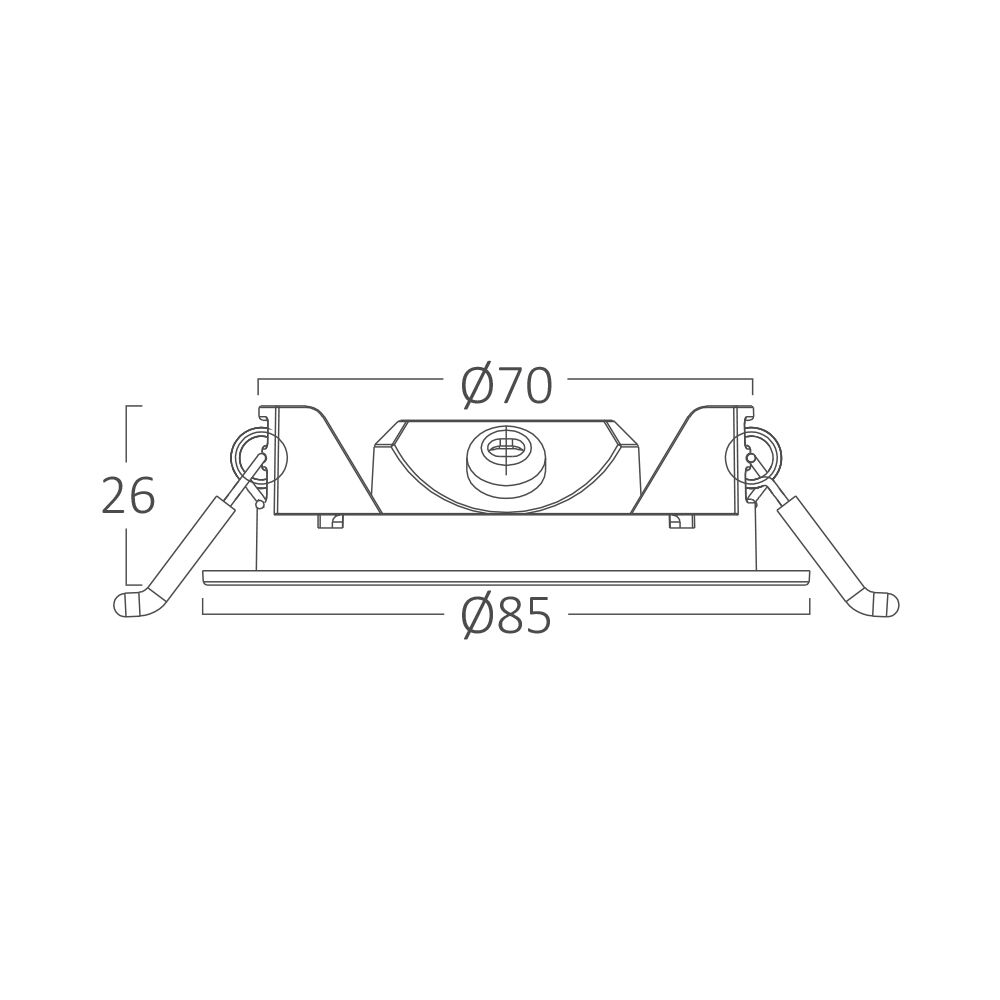

Dimensions & Weight

• Diameter: 85 mm
• P. Height: 26 mm
• Cutout: 70 mm
• Weight: 39 gr
