Braytron SNS SRP 20W RND White 3IN1 LED Panel

Braytron 105104-SNS-SRP-20W-RND-WHT-3IN1-LED PANEL-BRY​ BRYBP03-92080

General Characteristics

• Model No: BP03-92080
• Main Family: Indoor Lighting
• Sub Family: LED Small Panel
• Type: Recessed Panel
• Body Color: White
• Lamp Shape: Non-Directional
• Dimmable: Not-Dimmable
• Light Source: LED
• Class: Class II
• IP: IP20

Product Characteristics

• Wattage: 20 w
• Color Temperature: 3IN1
• Quse Lumen: 1800 lm
• Color Rendering Index (CRI): >80
• Energy Efficiency Level: F
• Beam Angle: 110° Degrees
• Color Category: 3IN1

Electrical Characteristics

• Lifetime: 20000 h
• Voltage: 220-240V
• Power Factor: >0,5
• Material: PC
• Working Temperature: -20 C+40 C
• Frequency: 50-60 Hz

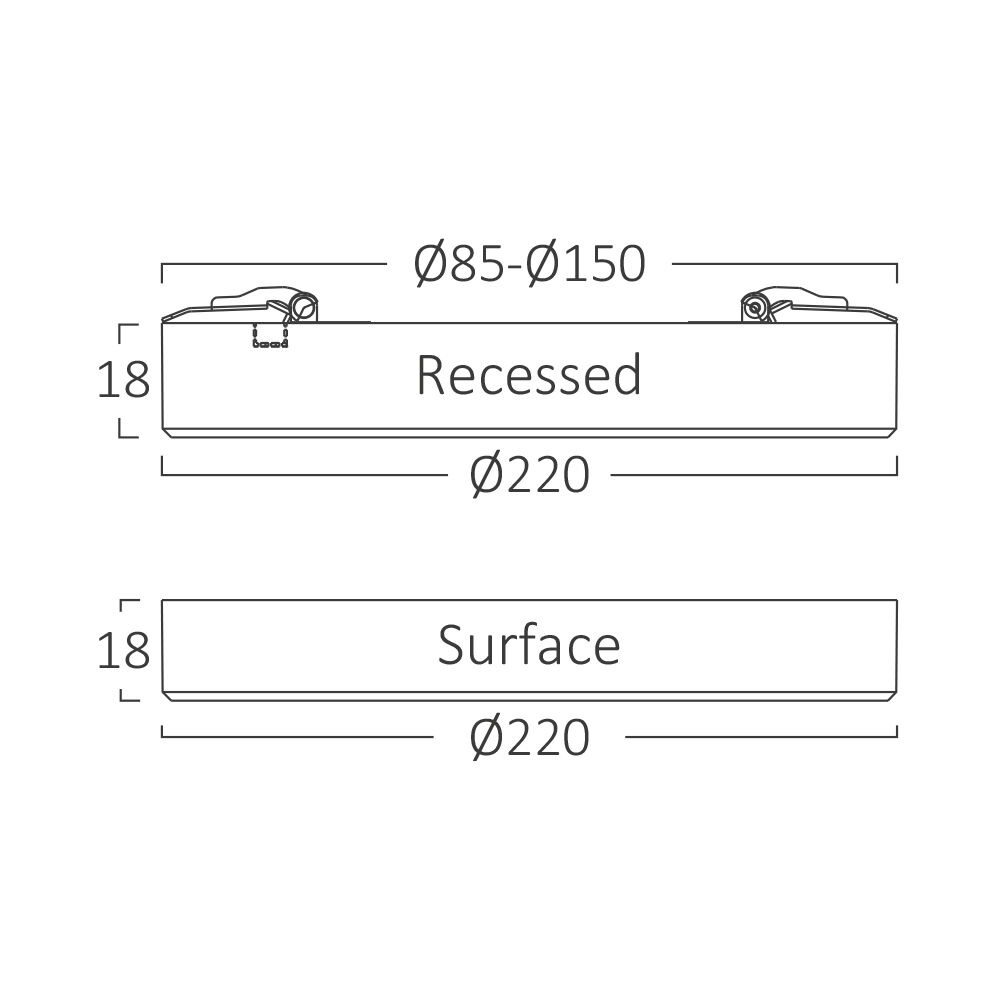

Dimensions & Weight

• Diameter: 220 mm
• P. Height: 18 mm
• Cutout: 85-150 mm
• Weight: 380 gr

Sensor Informations

• Sensor Type: Motion
• Detection Distance: 3m-8m
• Detection Angle: 90° Degrees-360° Degrees
• Installation Height: 2m-4 m
• Lux: 1500 lux
