Braytron 7W G3 SQUARE White 3IN1 LED Downlight

Braytron 102017 - 7W G3 SQUARE WHITE 3IN1 LED DOWNLIGHT-BRY BRYBD02-10780

General Characteristics

• Model No: BD02-10780
• Main Family: Indoor Lighting
• Sub Family: LED Spotlight
• Type: Spotlight
• Body Color: White
• Lamp Shape: Directional
• Dimmable: Not-Dimmable
• Light Source: LED
• Class: Class II
• IP: IP20

Product Characteristics

• Wattage: 7 w
• Color Temperature: 3IN1
• Quse Lumen: 630 lm
• Color Rendering Index (CRI): >80
• Energy Efficiency Level: F
• Beam Angle: 38° Degrees
• Color Category: 3IN1

Electrical Characteristics

• Lifetime: 20000 h
• Voltage: 220-240V
• Power Factor: >0,5
• Material: PC
• Working Temperature: -20 C+40 C
• Frequency: 50-60 Hz

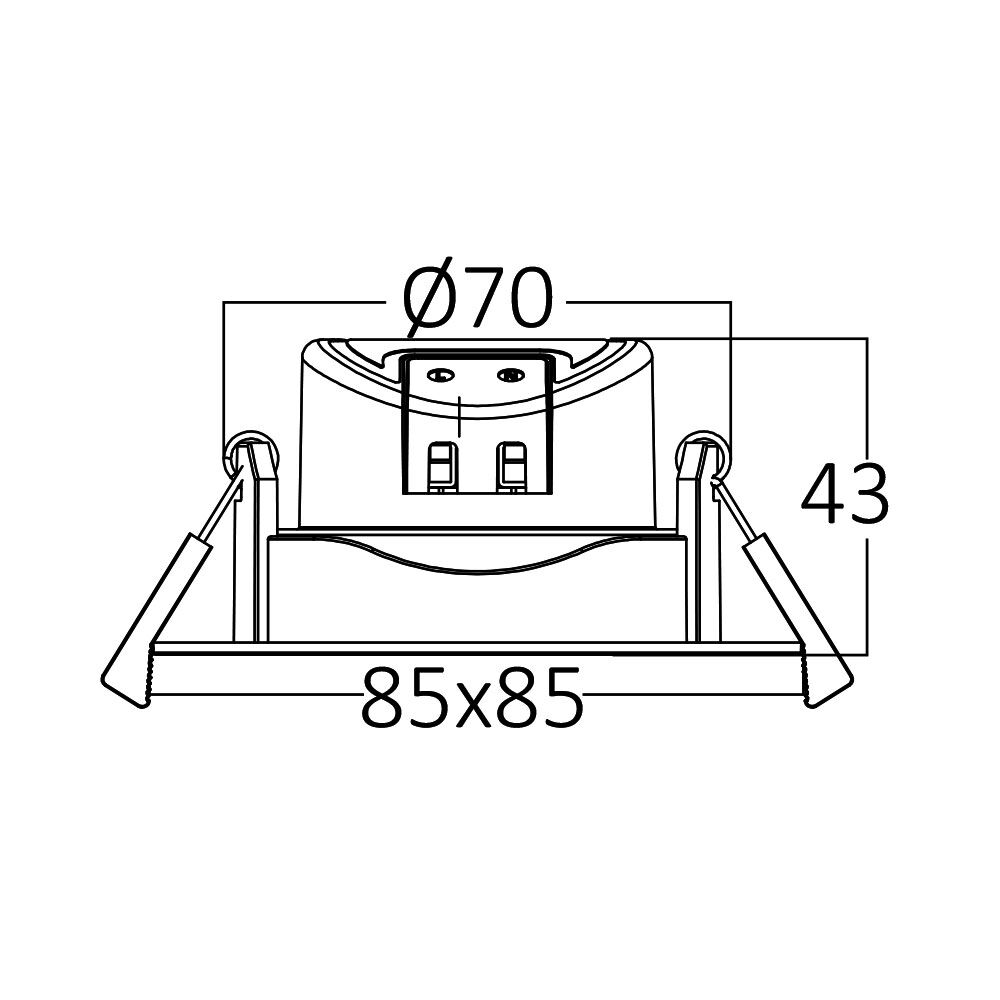

Dimensions & Weight

• P. Length: 85 mm
• P. Width: 85 mm
• P. Height: 43 mm
• Cutout: 70 mm
• Weight: 77 gr

Datablad

Conformiteitsverklaring

EMC Report

LVD Report

5949097718786
