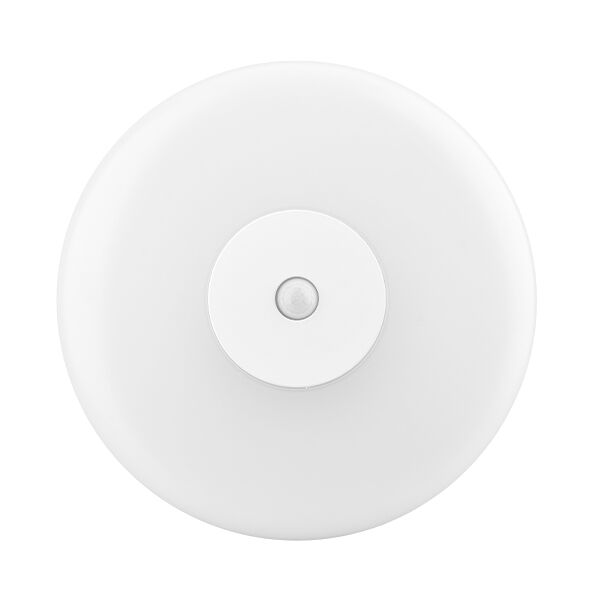

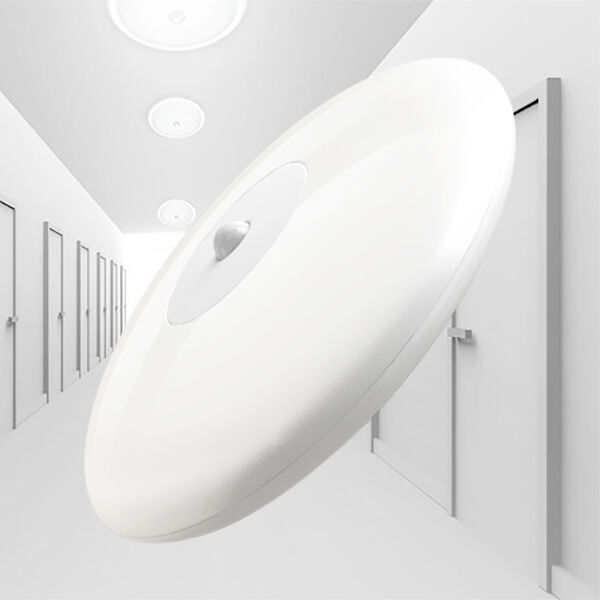

Braytron JADE ROUND 18W SENSOR 3000K IP44 Ceiling Light

Braytron 103063 - JADE ROUND 18W SENSOR 3000K IP44 CEILING LIGHT BRYBH15-01100

General Characteristics

• Model No: BH15-01100
• Main Family: Indoor Lighting
• Sub Family: Ceiling Light Jade
• Type: Ceiling Light
• Body Color: White
• Lamp Shape: Non-Directional
• Dimmable: Not-Dimmable
• Light Source: LED
• Class: Class II
• IP: IP44
• IK: IK05

Product Characteristics

• Wattage: 18 w
• Color Temperature: 3000K
• Quse Lumen: 1740 lm
• Color Rendering Index (CRI): >80
• Energy Efficiency Level: F
• Beam Angle: 110° Degrees
• Color Category: Warm White

Electrical Characteristics

• Lifetime: 20000 h
• Voltage: 220-240V
• Power Factor: >0,5
• Material: PC
• Working Temperature: -20 C+40 C
• Frequency: 50-60 Hz

Dimensions & Weight

• Diameter: 260 mm
• P. Height: 65 mm
• Weight: 550 gr

Sensor Informations

• Sensor Type: PIR
• Detection Distance: Max. 3m
• Detection Speed: 0,6-1,5m/s
• Installation Height: 3m
• Time Delay: 120sec
• Lux: 1440 lux

Datablad

EMC Report

5949097706080
