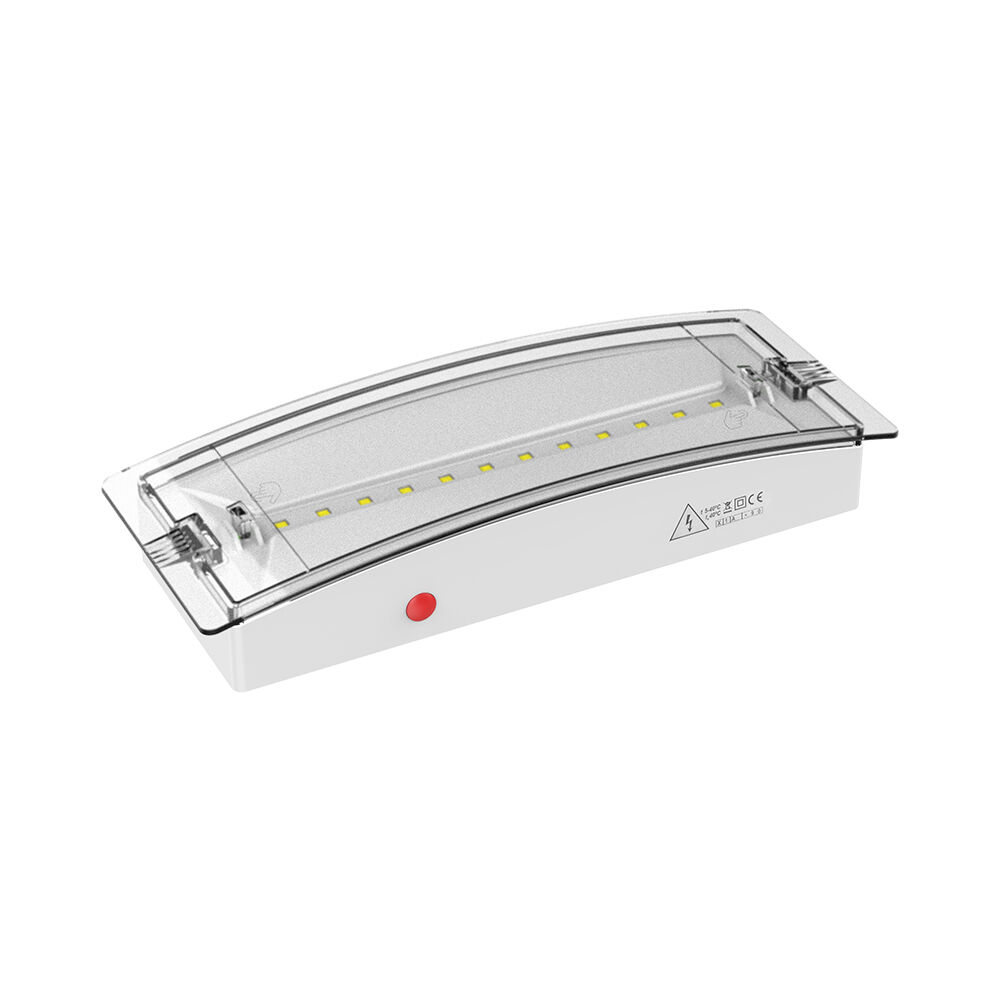

Braytron EXIT LED 3W DUAL IP54 White Emergency Exit Lamp

Braytron 103280-EXIT-LED-3W-DUAL-IP54-WHT-EMERGENCY EXIT LAMP BRYBC14-00800

General Characteristics

• Model No: BC14-00800
• Main Family: Rechargeables
• Sub Family: Exit Lamp
• Type: Led Emergency
• Body Color: White
• Lamp Shape: N/A
• Dimmable: Not-Dimmable
• Light Source: LED
• Class: Class II
• IP: IP54

Product Characteristics

• Wattage: 3 w
• Color Temperature: 6500K
• Quse Lumen: 100 lm
• Beam Angle: 120° Degrees
• Color Category: Cool White

Electrical Characteristics

• Lifetime: 20000 h (For LED)
• Voltage: 220-240V
• Power Factor: >0,5
• Material: ABS
• Working Temperature: -20 C+40 C
• Frequency: 50-60 Hz
• Working Time: 120 min

Battery Informations

• Battery: LiFePO4 3.2V-600maH
• Emergency Mode: Dual (Non-Maintaned, Maintaned)
• Charging Time: 6 h-8 h
• View Distance: 14 m

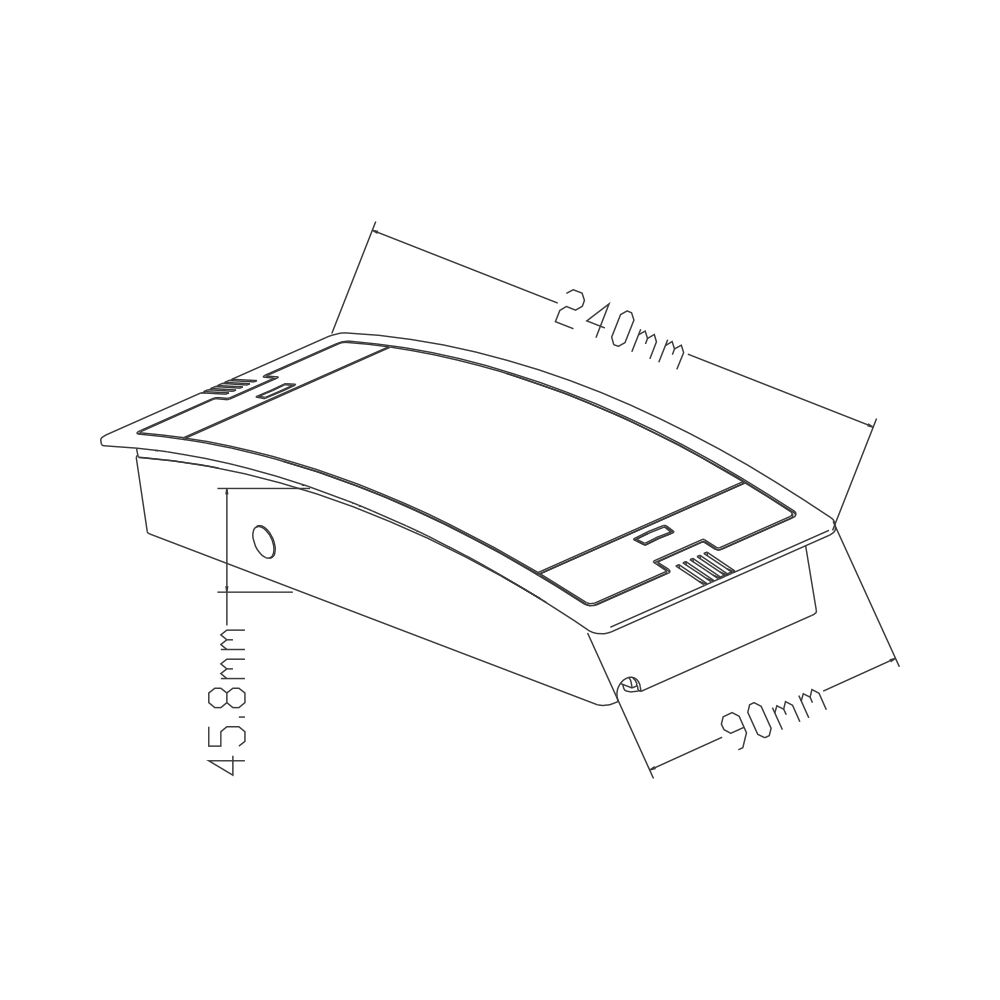

Dimensions & Weight

• P. Length: 240 mm
• P. Width: 90 mm
• P. Height: 46 mm
• Weight: 270 gr

Datablad

Conformiteitsverklaring

EMC Report

LVD Report

5949097739651
