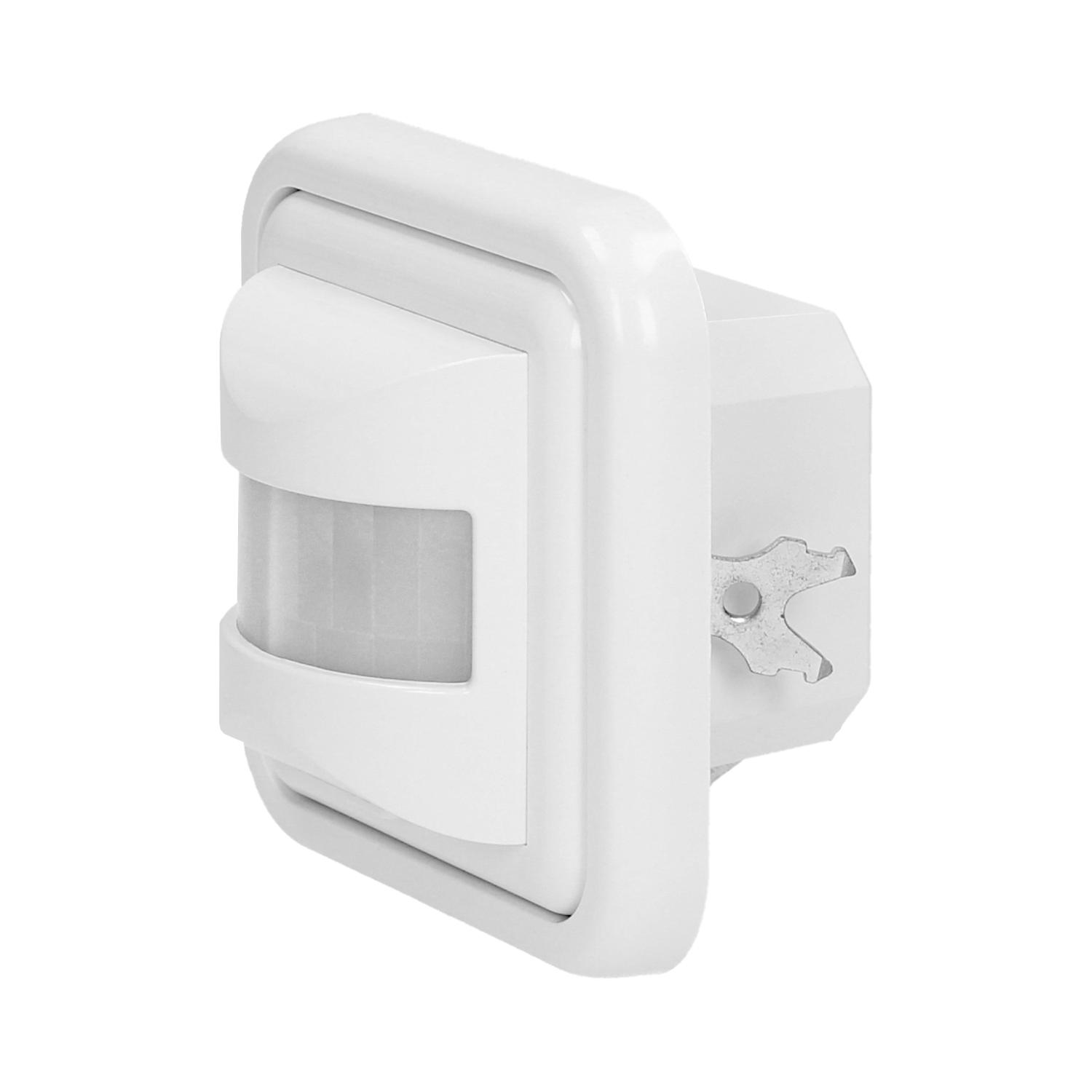

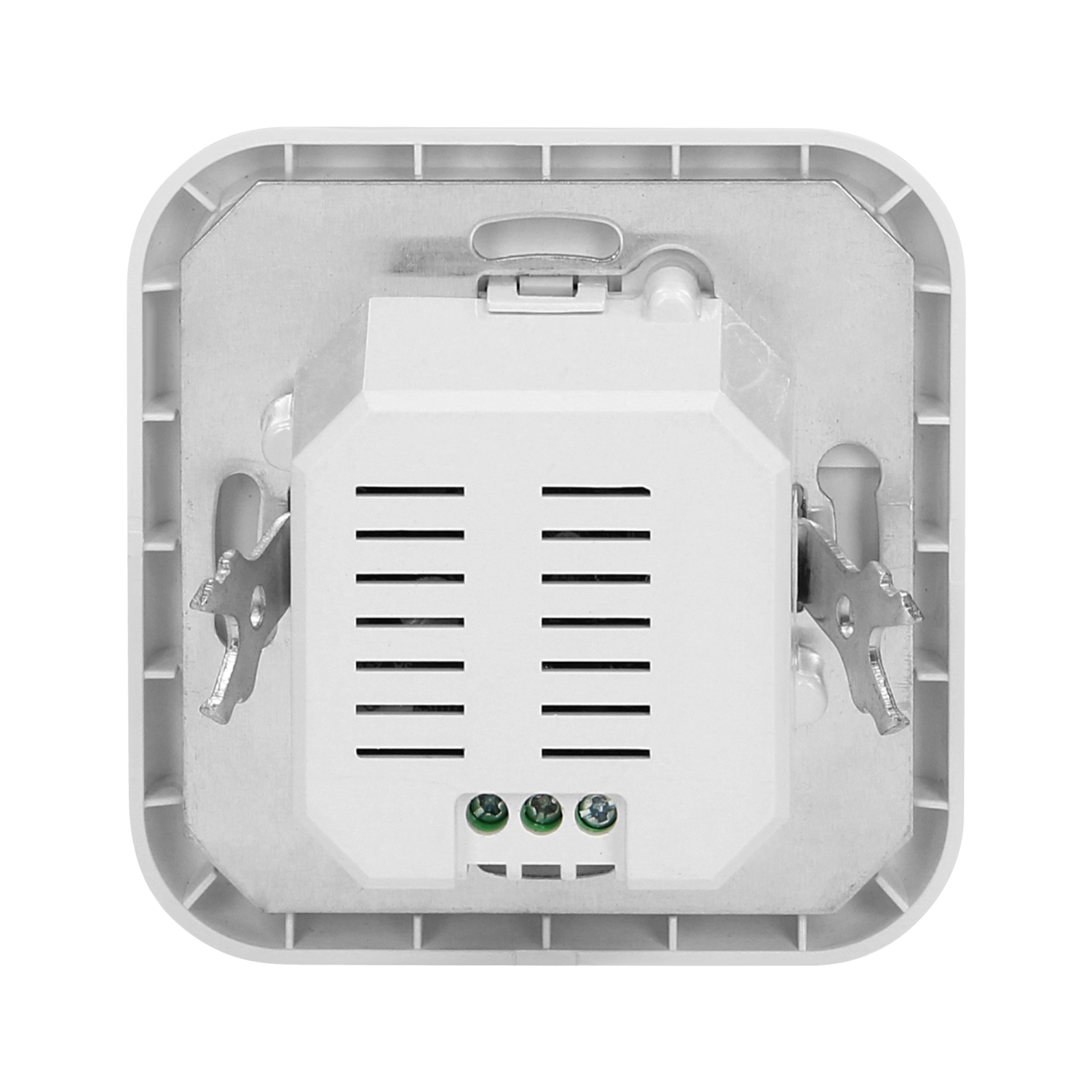

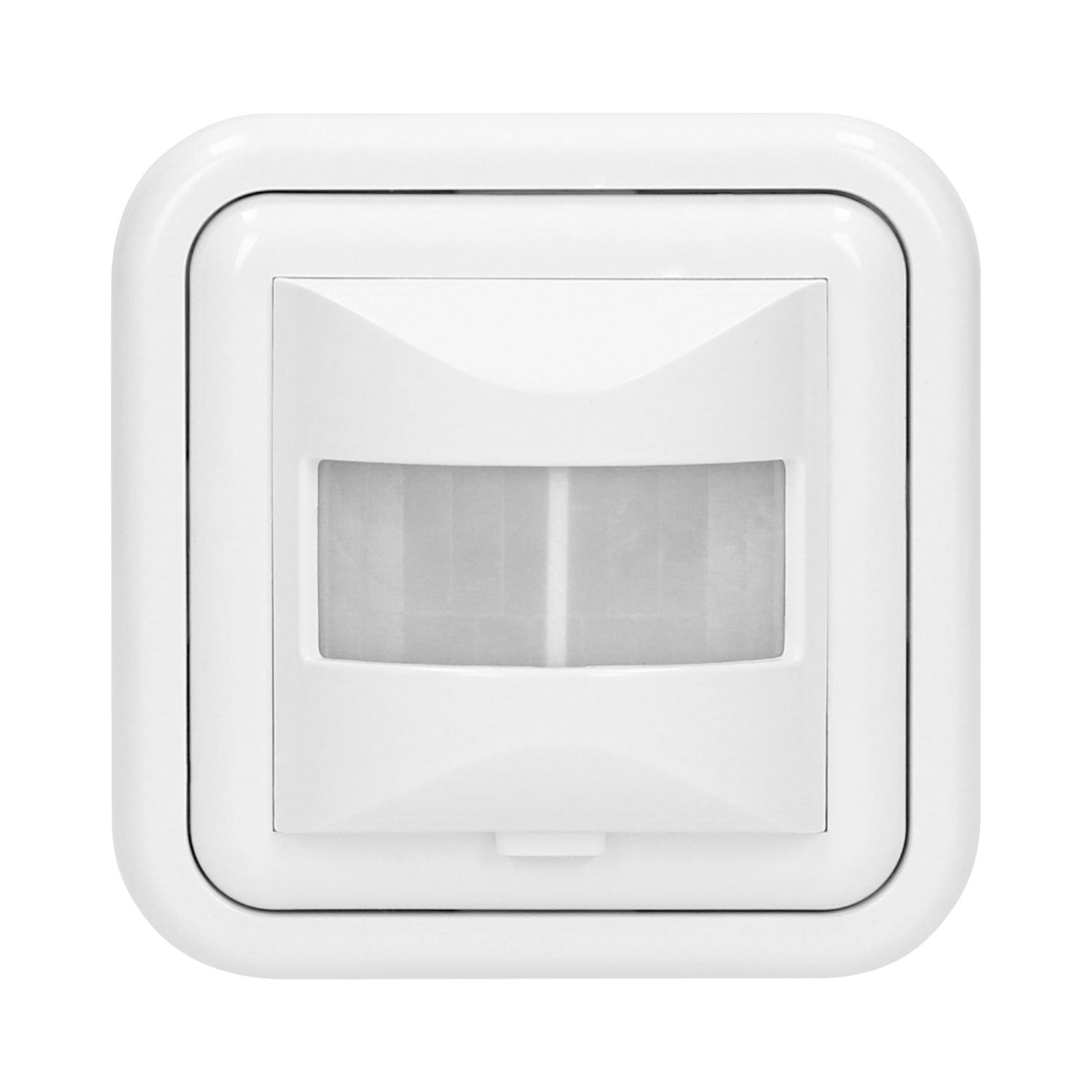

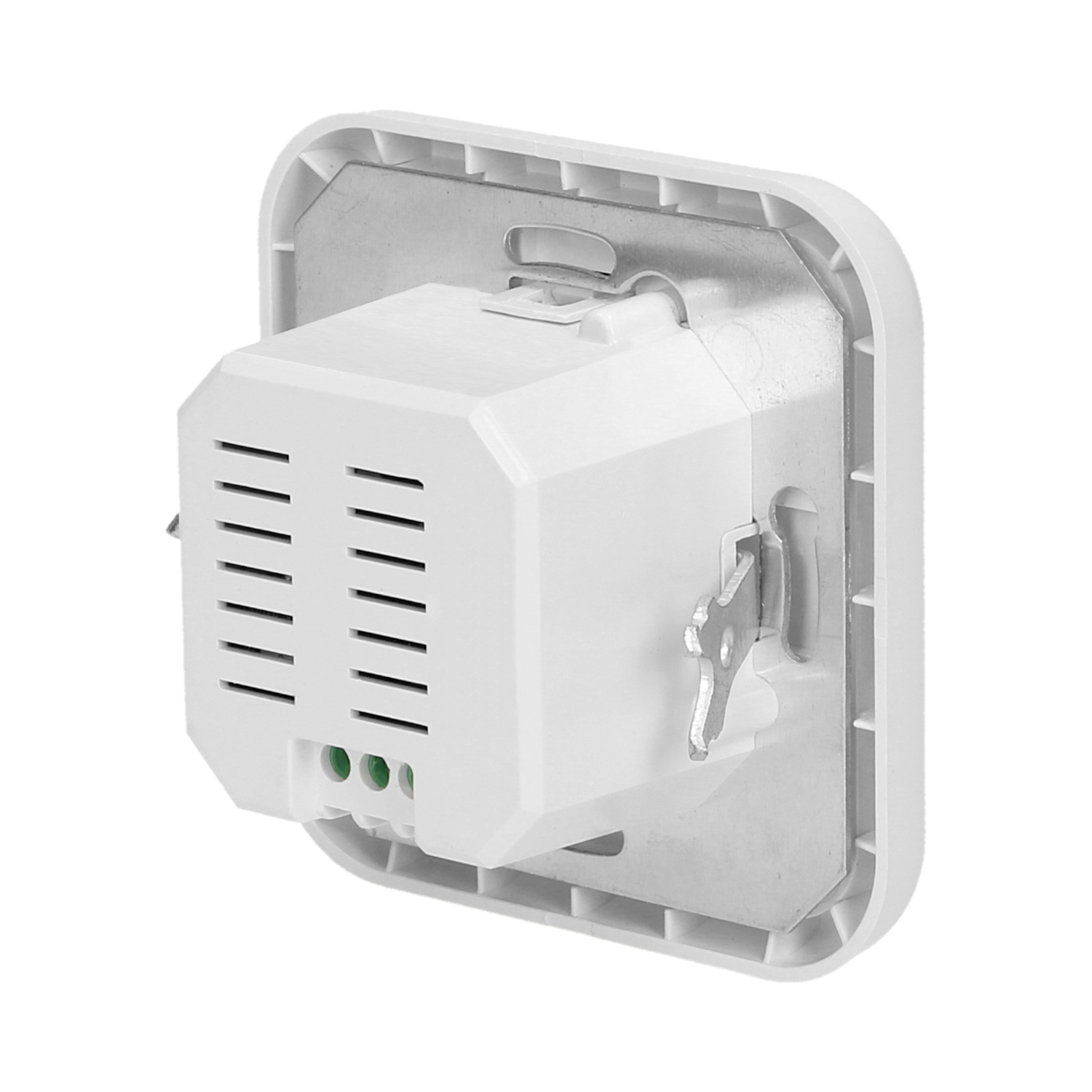

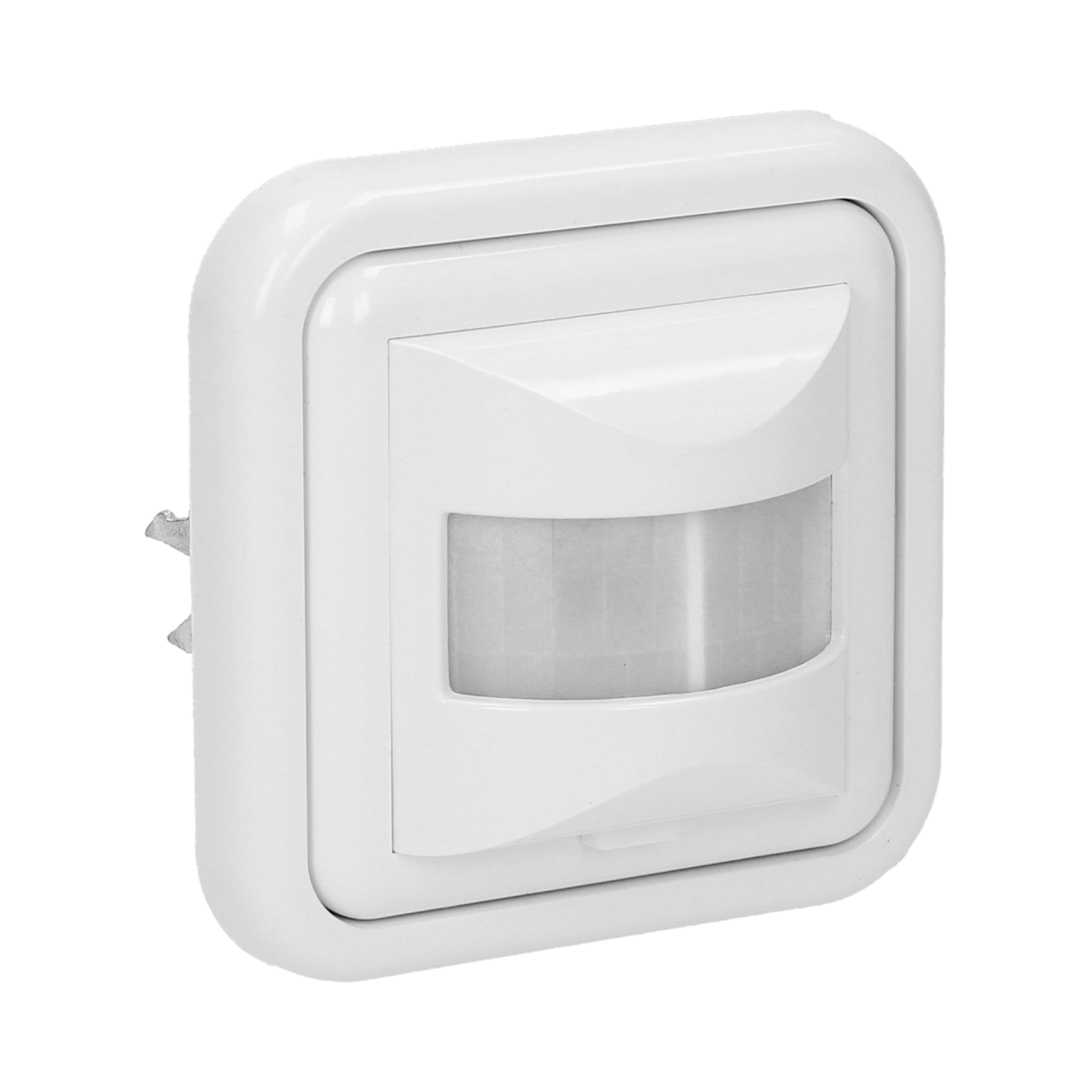

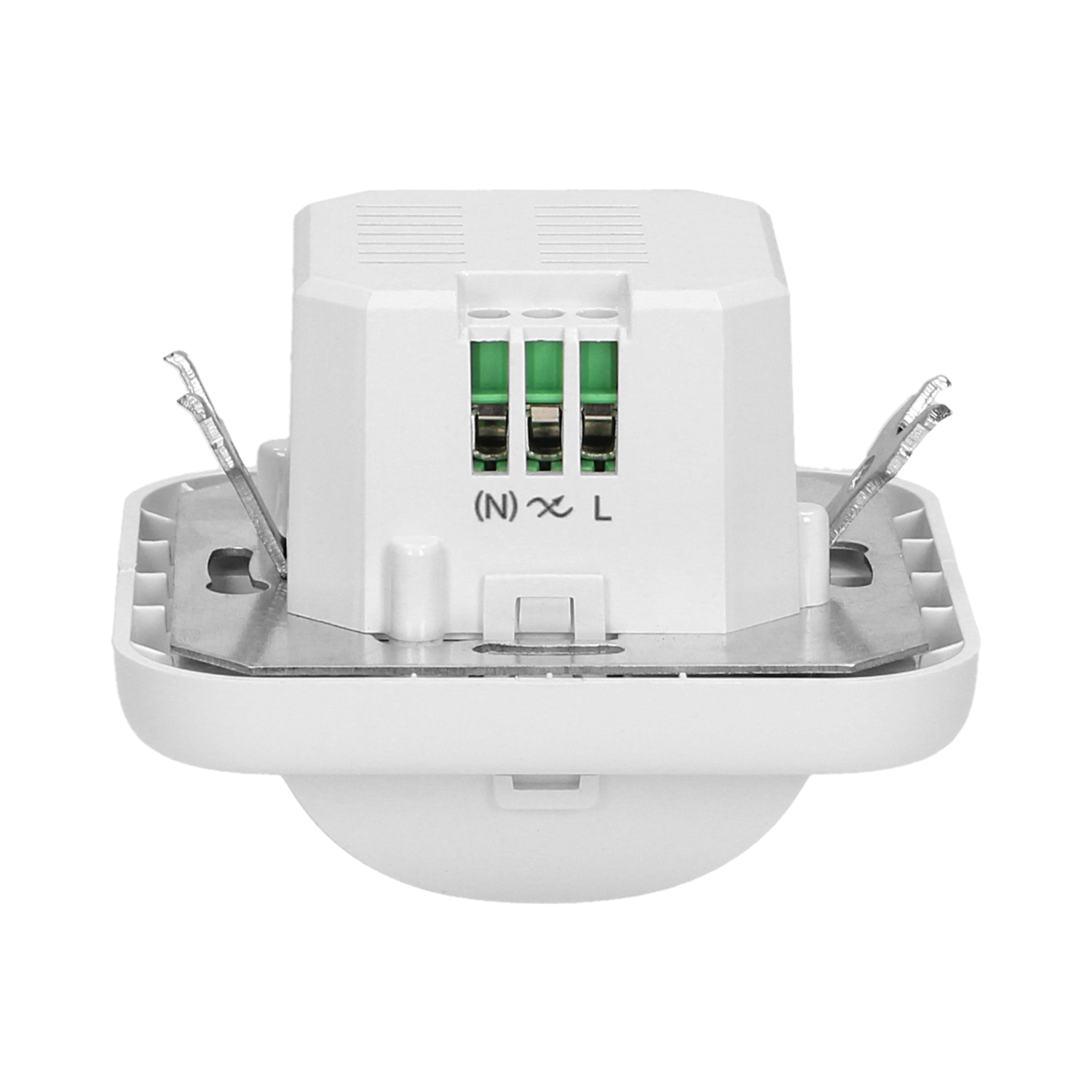

ORNO 140459-PIR motion sensor 160°, 2 or 3 wires

ORNO 140459-PIR motion sensor 160°, 2 or 3 wires ORNOR-CR-220

Passive infrared sensor Operates in two or three-wire system For indoor usage Regulation: lighting time (TIME) and the sensitivity of the light intensity (LUX) Can be installed in the junction box of 60 mm.

General information:

• Max. load: 500
• Max. load of the LED light source: 125 W
• Degree of protection (IP): 20
• Relay output: Yes
• Nominal voltage: 230V~, 50Hz
• Presence detector: No
• Colour: white
• Installation: flush mounting
• Dimensions of the sensor - width (mm): 80,7 mm
• Dimensions of the sensor - height (mm): 80,7 mm
• Dimensions of the sensor - depth (mm): 65 mm
• Detection angle: 160°
• Dimensions of the mounting hole: Ø60 mm
• Type of sensor: Infrared
• Detection range: 9 m
• Adjustable daylight sensor (LUX): Yes
• Daylight sensor adjustment range (LUX): <3—2000lux
• Adjustable time setting (TIME): Yes
• Lighting time adjustment range (TIME): min: 10 sek. ± 3 sek.; max: 7 min. ± 2 min.
• Adjustment of motion detection range (SENS): No
