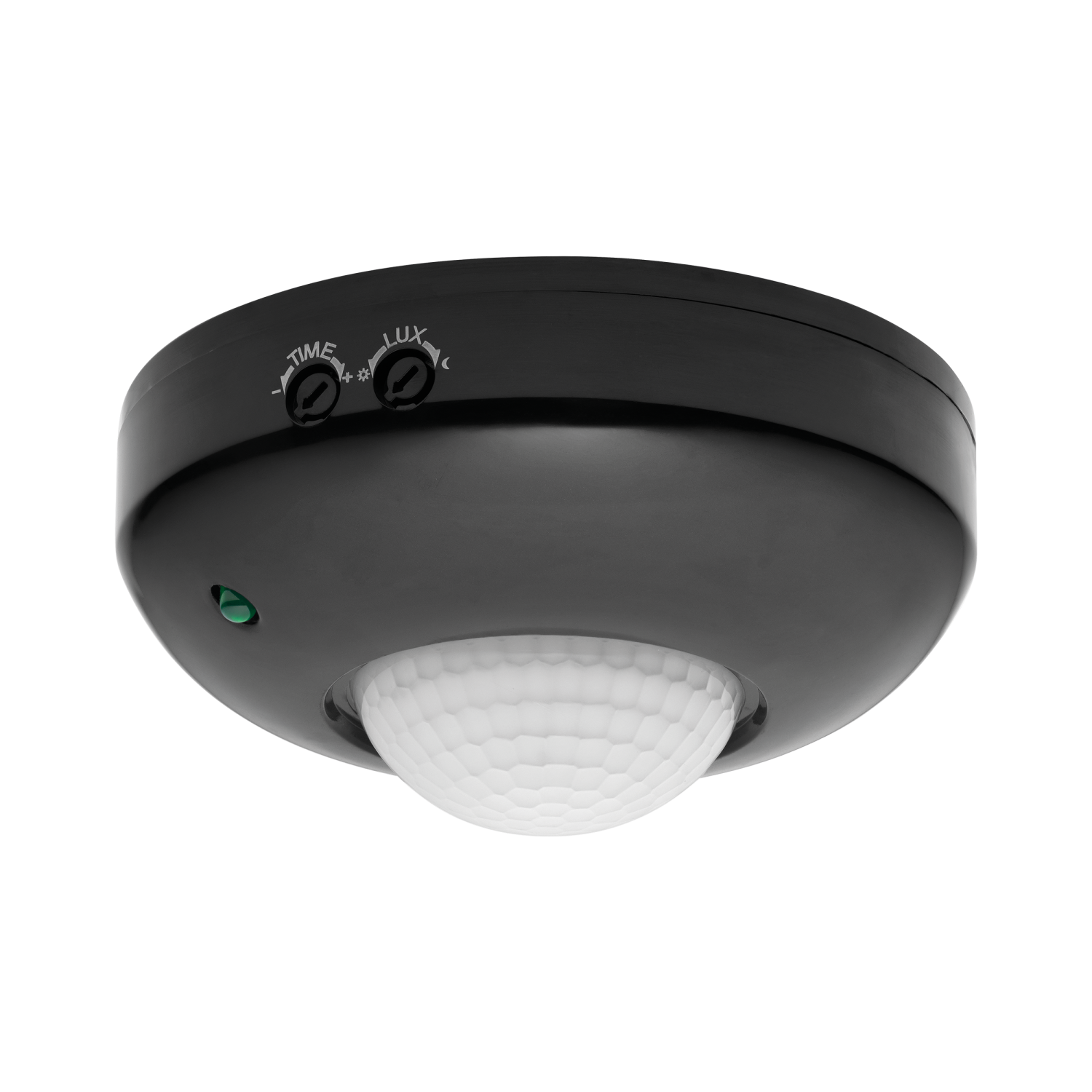

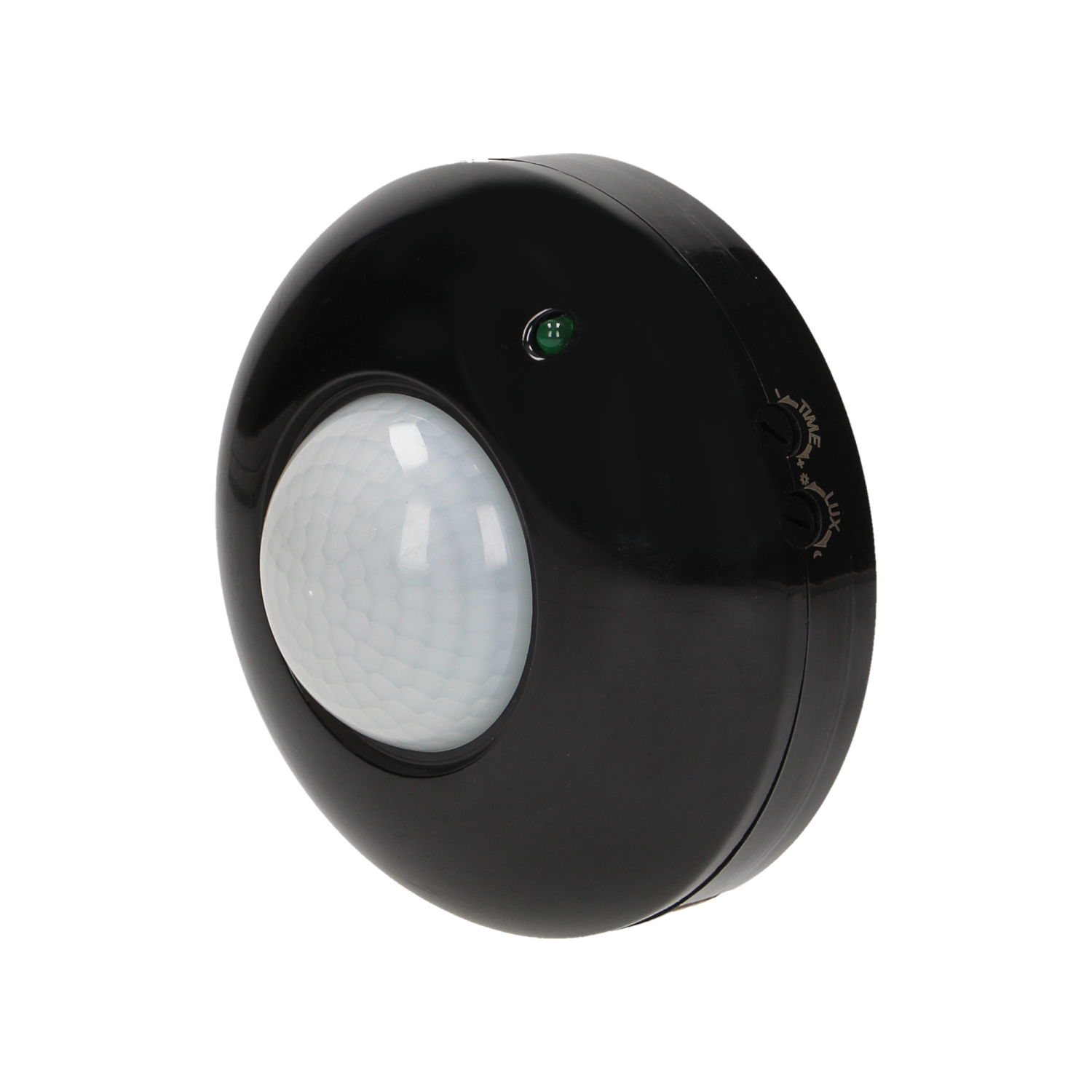

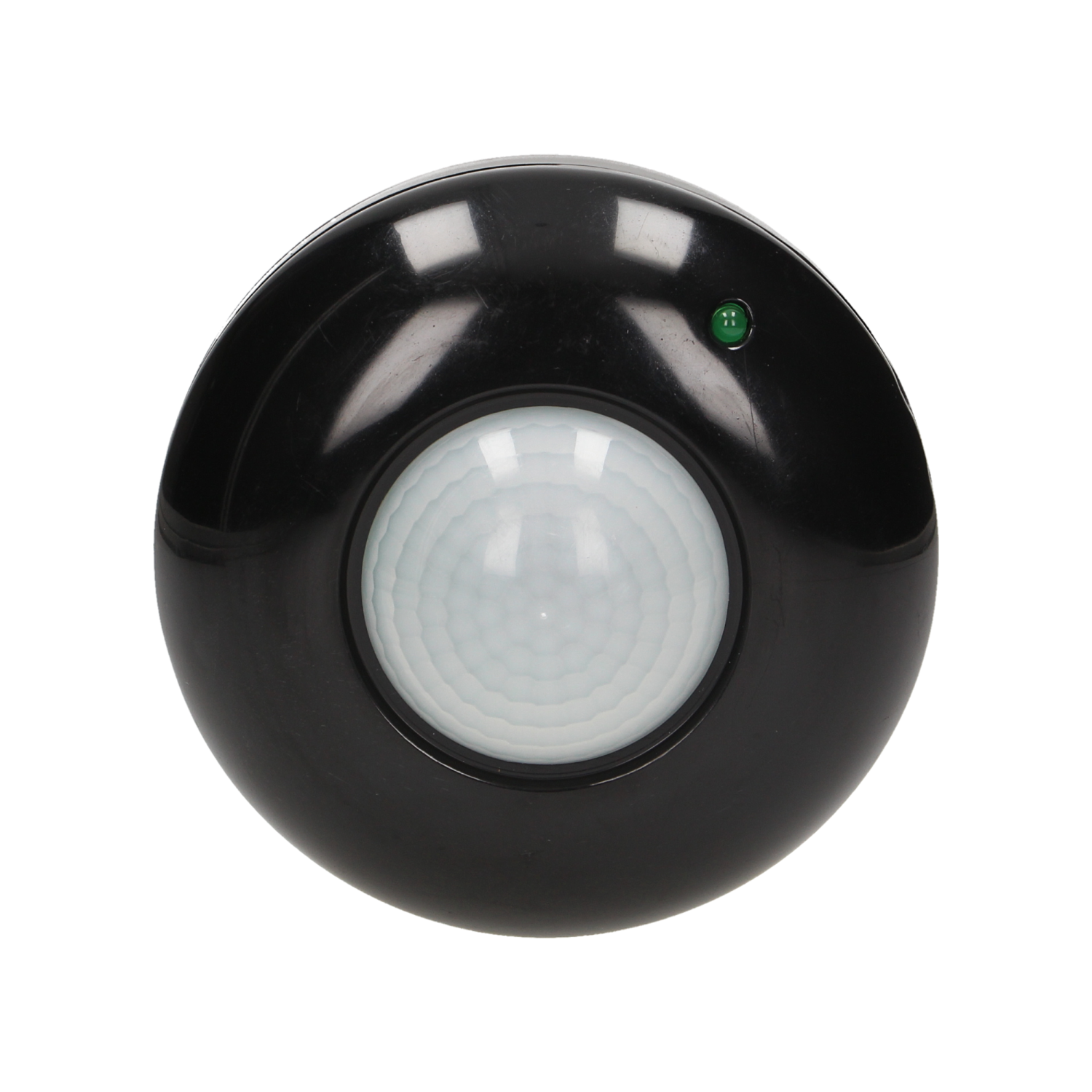

ORNO PIR motion sensor 360° rated load 1200W; IP20 Black

ORNO 140030 - PIR motion sensor 360° rated load 1200W; IP20 Black ORNOR-CR-203/B

General information:

• Max. load: 1200
• Max. load of the LED light source: 300 W
• Degree of protection (IP): 20
• Relay output: Yes
• Nominal voltage: 230V~, 50Hz
• Presence detector: No
• Colour: black
• Installation: surface mounting
• Dimensions of the sensor - width (mm): Ø115 mm
• Dimensions of the sensor - height (mm): Ø115 mm
• Dimensions of the sensor - depth (mm): 58 mm
• Detection angle: 360°
• Type of sensor: Infrared
• Detection range: Ø6m m
• Adjustable daylight sensor (LUX): Yes
• Daylight sensor adjustment range (LUX): <3—2000lux
• Adjustable time setting (TIME): Yes
• Lighting time adjustment range (TIME): min: 10 sek. ± 3 sek.; max: 7 min. ± 2 min.
• Adjustment of motion detection range (SENS): No

Datablad

Handleiding

5908235905174
