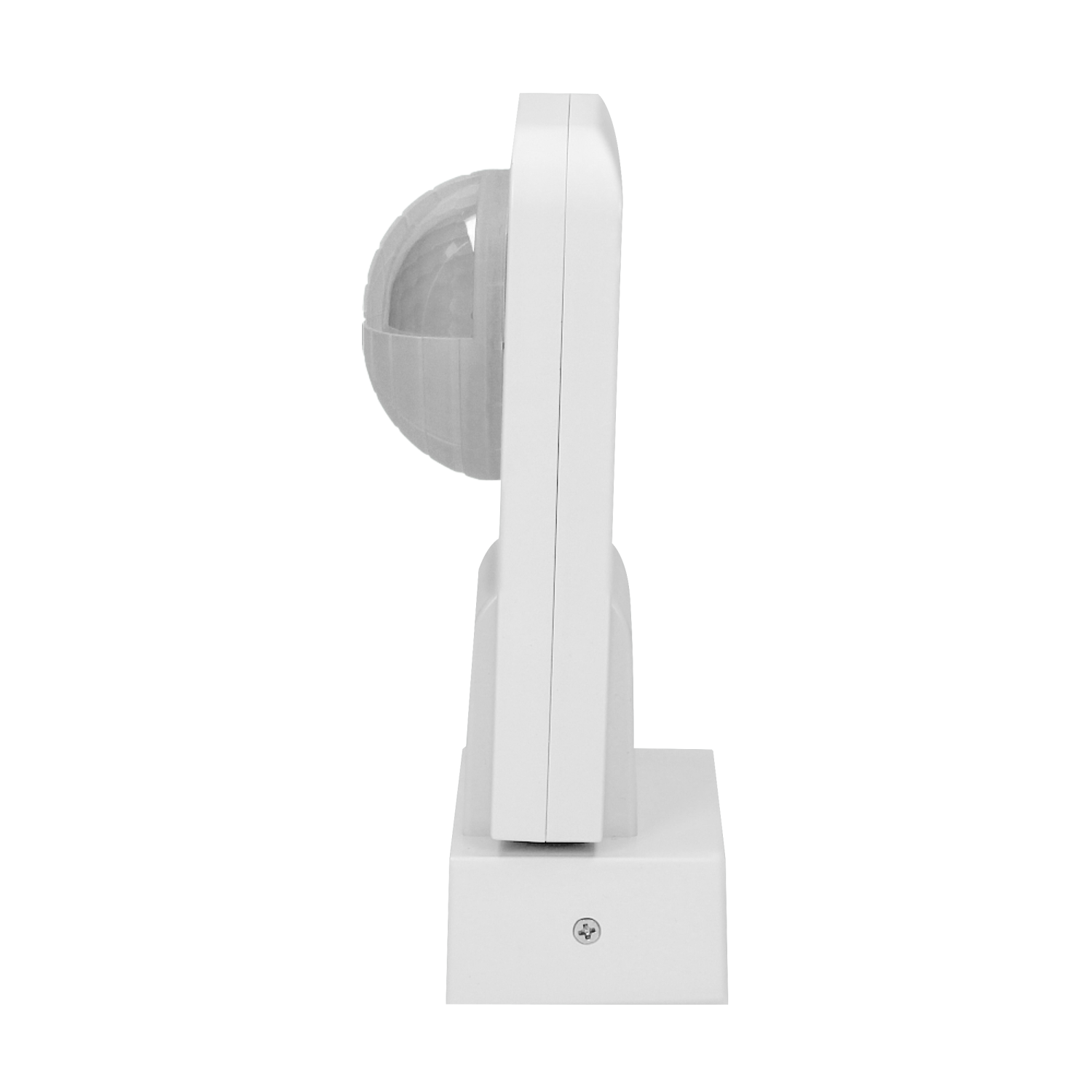

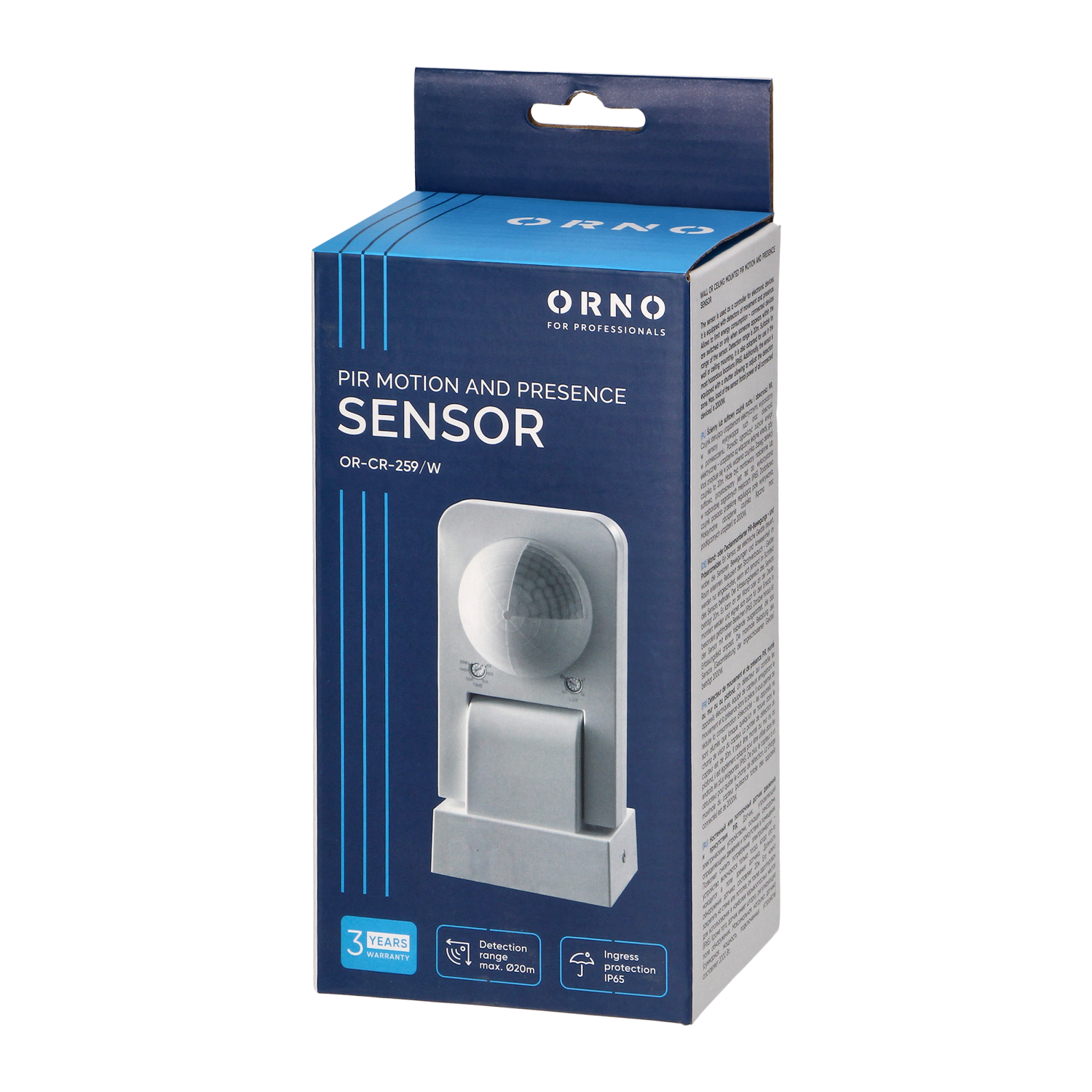

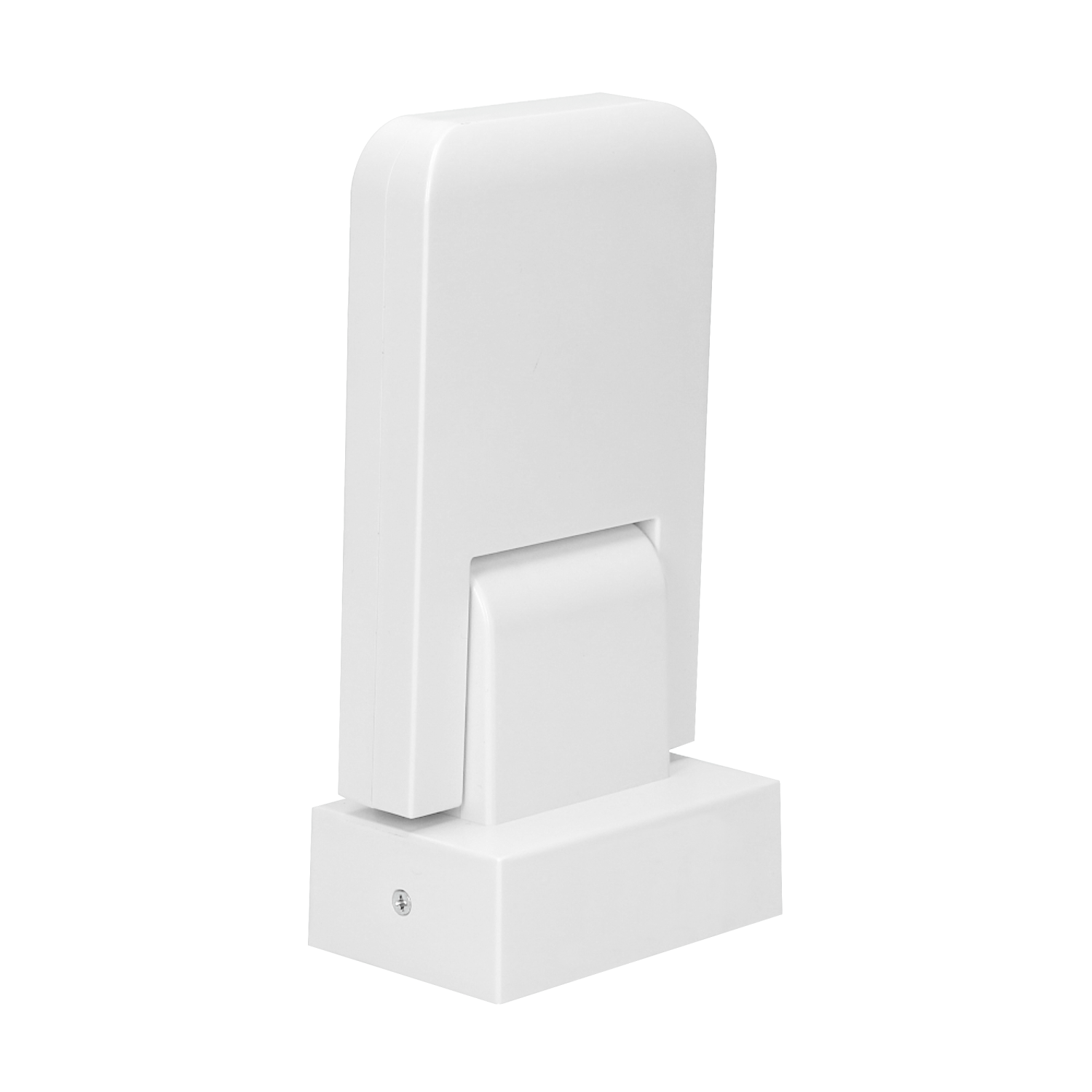

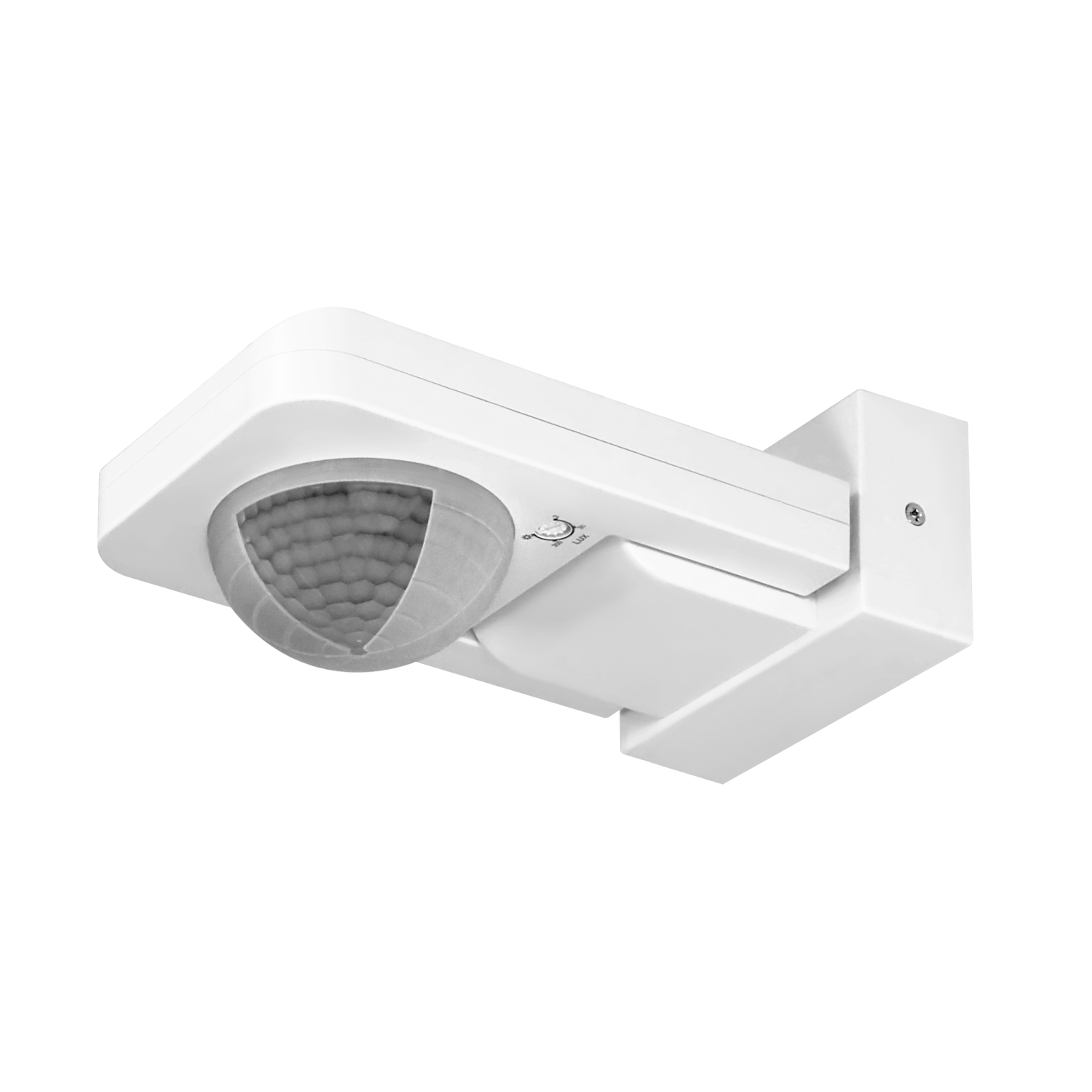

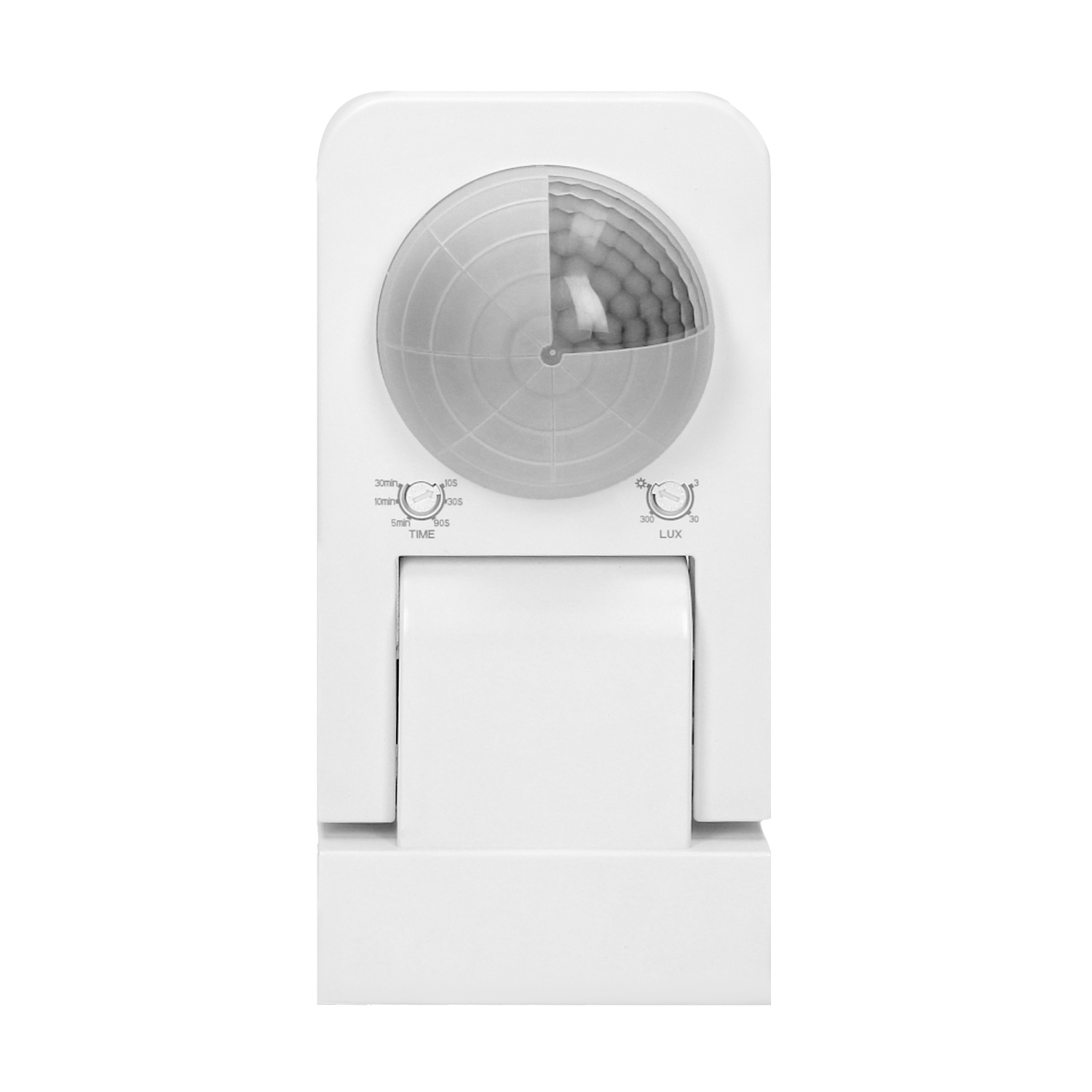

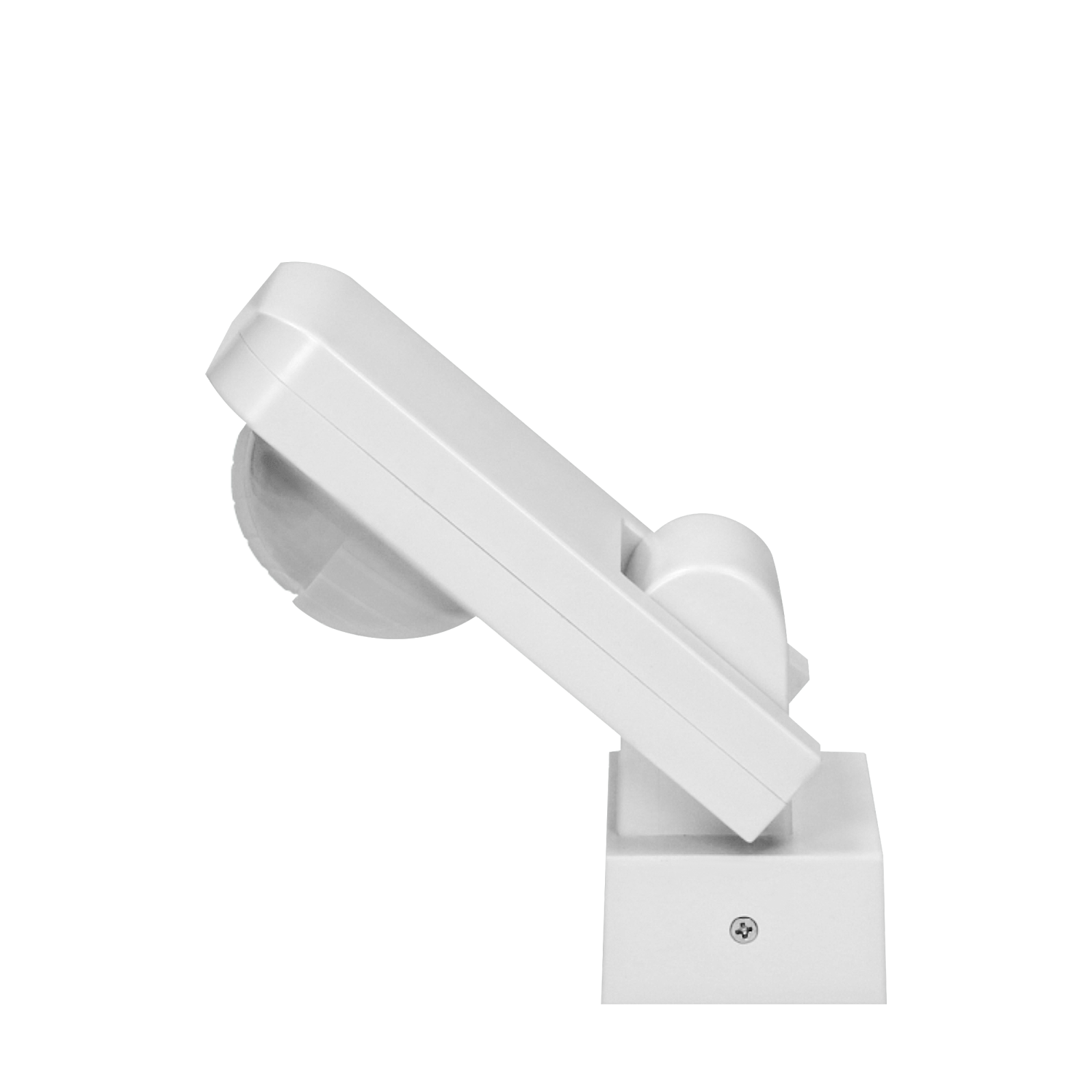

ORNO 140027 - Motion sensor 360°, White 2000W, max. 20m

ORNO 140027 - Motion sensor 360°, white 2000W, max. 20m ORNOR-CR-259/W

The motion sensor is designed for an automatic control of lighting or other electrical equipment. Triple system of sensors with detectors placed at a special angle provides control of the entire area. The device is suitable for use in large rooms, e.g.: warehouse halls, waiting rooms. The sensor is characterized by higher intelligence and greater accuracy, which allows detection of even the smallest movements. Potentiometers for regulation: lighting time and sensitivity of light intensity. The sensor collaborates with LED lighting.

General information:

• Max. load: 2000
• Max. load of the LED light source: 500 W
• Degree of protection (IP): 65
• Relay output: Yes
• Nominal voltage: 230V~, 50Hz
• Presence detector: Yes
• Colour: white
• Installation: surface mounting
• Dimensions of the sensor - width (mm): 172,5 mm
• Dimensions of the sensor - height (mm): 86,5 mm
• Dimensions of the sensor - depth (mm): 56 mm
• Other features: Presence sensor
• Detection angle: 360°
• Type of sensor: Infrared
• Detection range: Ø20 m
• Adjustable daylight sensor (LUX): Yes
• Daylight sensor adjustment range (LUX): <3—2000lux
• Adjustable time setting (TIME): Yes
• Lighting time adjustment range (TIME): min: 10 sek. ± 3 sek.; max: 30 min. ± 2 min.
• Adjustment of motion detection range (SENS): No
