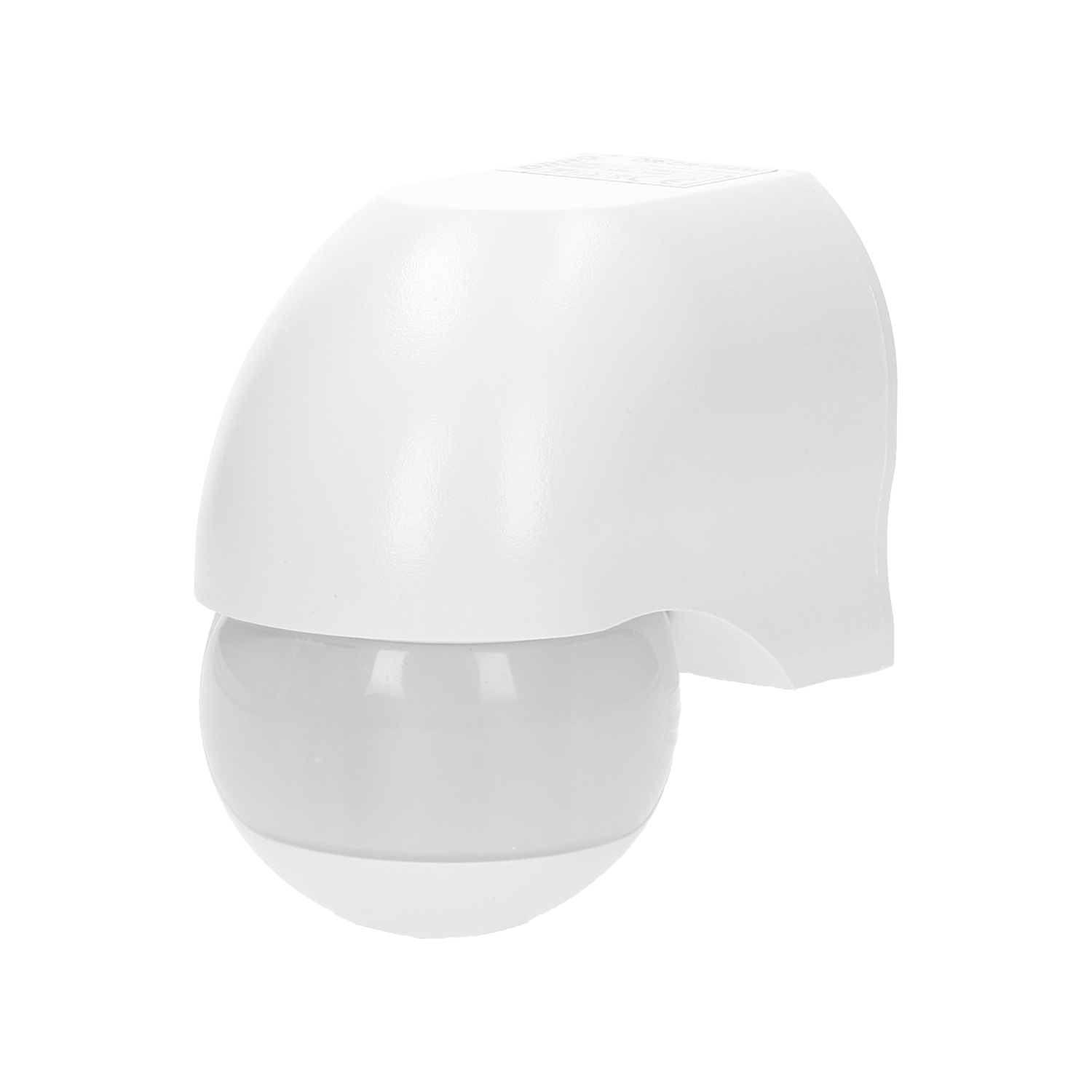

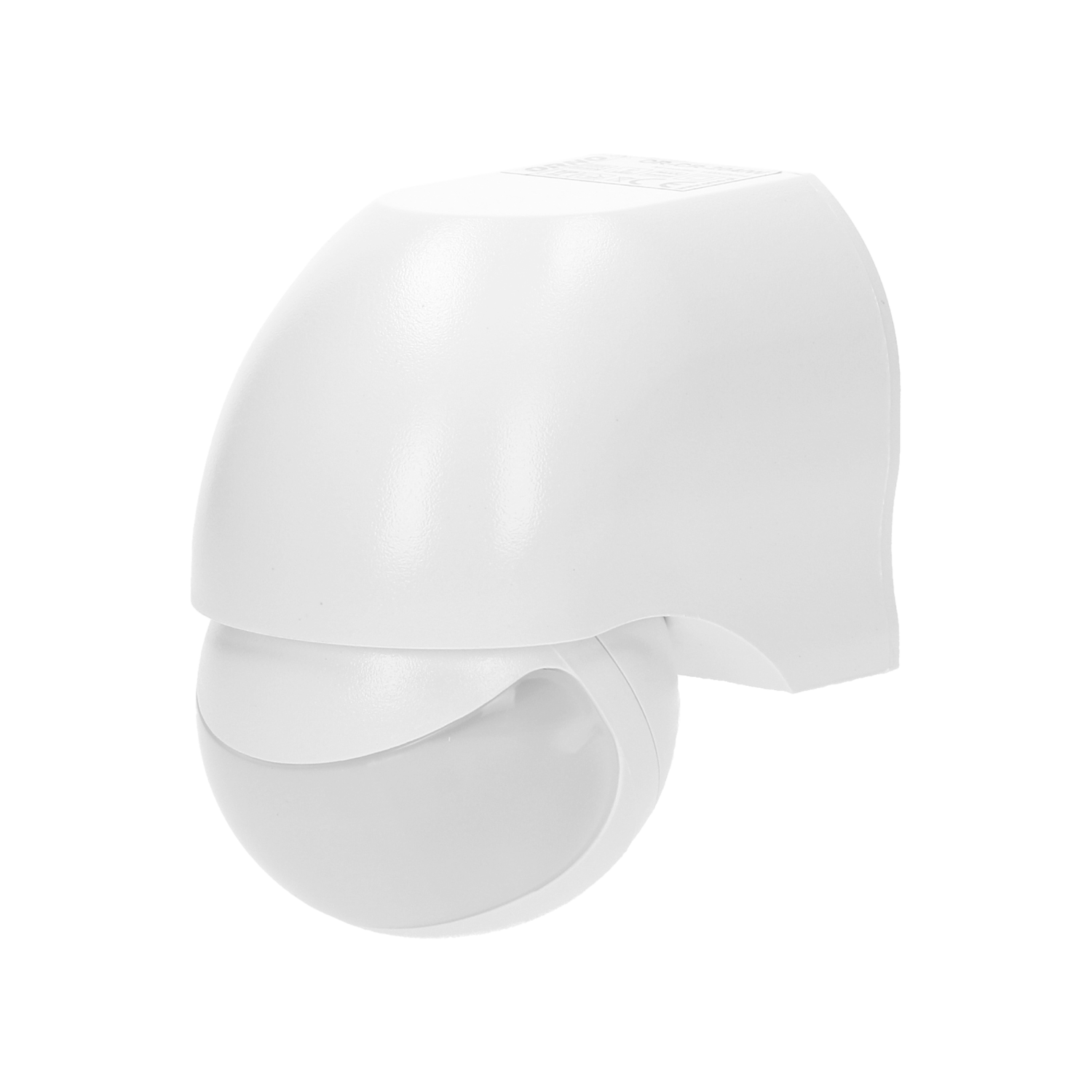

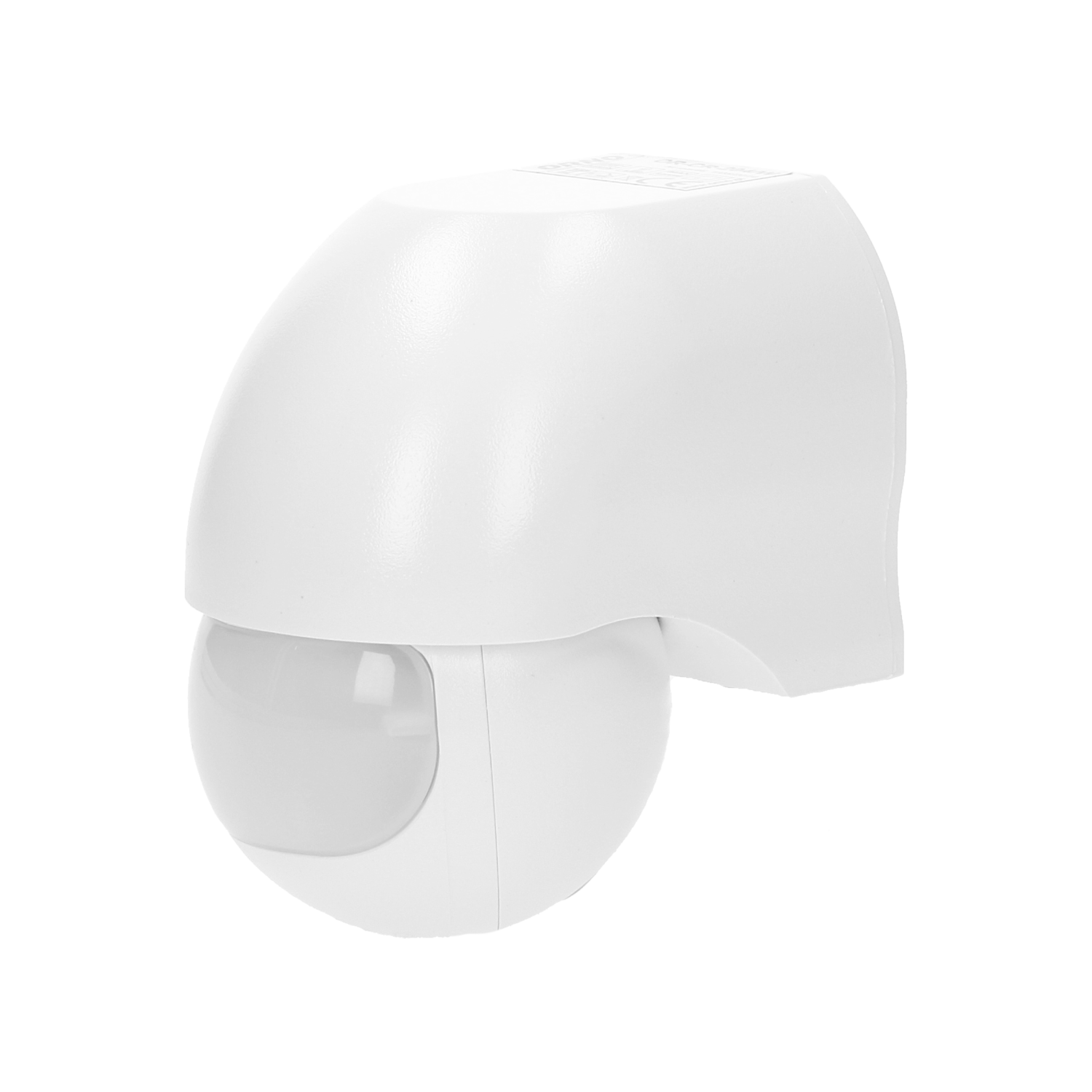

ORNO Adjustable PIR motion sensor 180° White 1200W IP44

ORNO 140023 - Adjustable PIR motion sensor 180° 1200W IP44 ORNOR-CR-204/W

Passive infrared sensor For indoor and outdoor usage Collaborates with LED lighting Mechanical adjustment of vertical and horizontal Regulation: lighting time (TIME) and the sensitivity of the light intensity (LUX) Modern design.

General information:

• Max. load: 1200
• Max. load of the LED light source: 300 W
• Degree of protection (IP): 44
• Relay output: Yes
• Nominal voltage: 230V~, 50Hz
• Presence detector: No
• Colour: white
• Installation: surface mounting
• Dimensions of the sensor - depth (mm): 64 mm
• Detection angle: 180°
• Type of sensor: Infrared
• Detection range: 12 m
• Adjustable daylight sensor (LUX): Yes
• Daylight sensor adjustment range (LUX): <3—2000lux
• Adjustable time setting (TIME): Yes

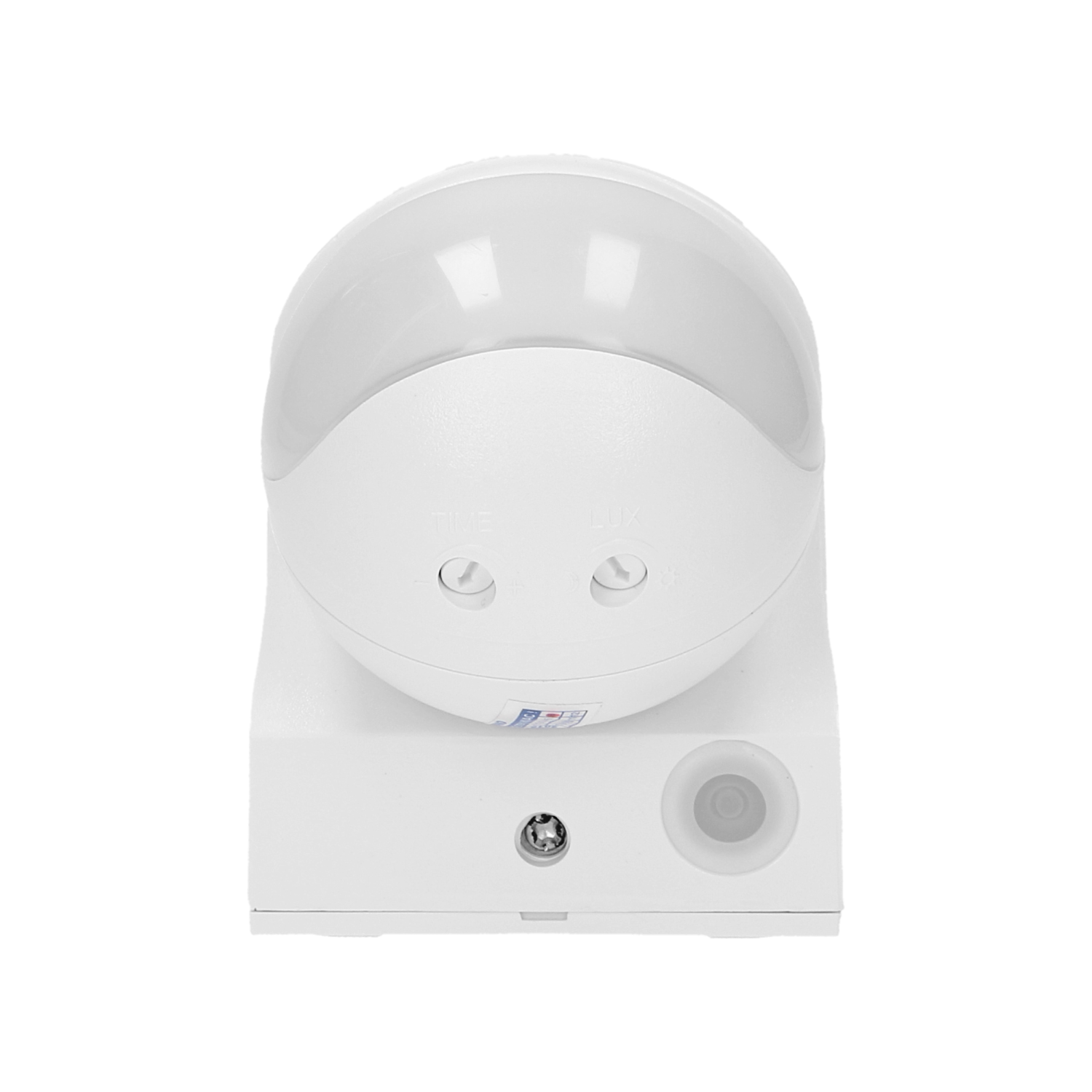

• Lighting time adjustment range (TIME): min: 10 sek. ± 3 sek.; max: 7 min. ± 2 min.
• Adjustment of motion detection range (SENS): No
