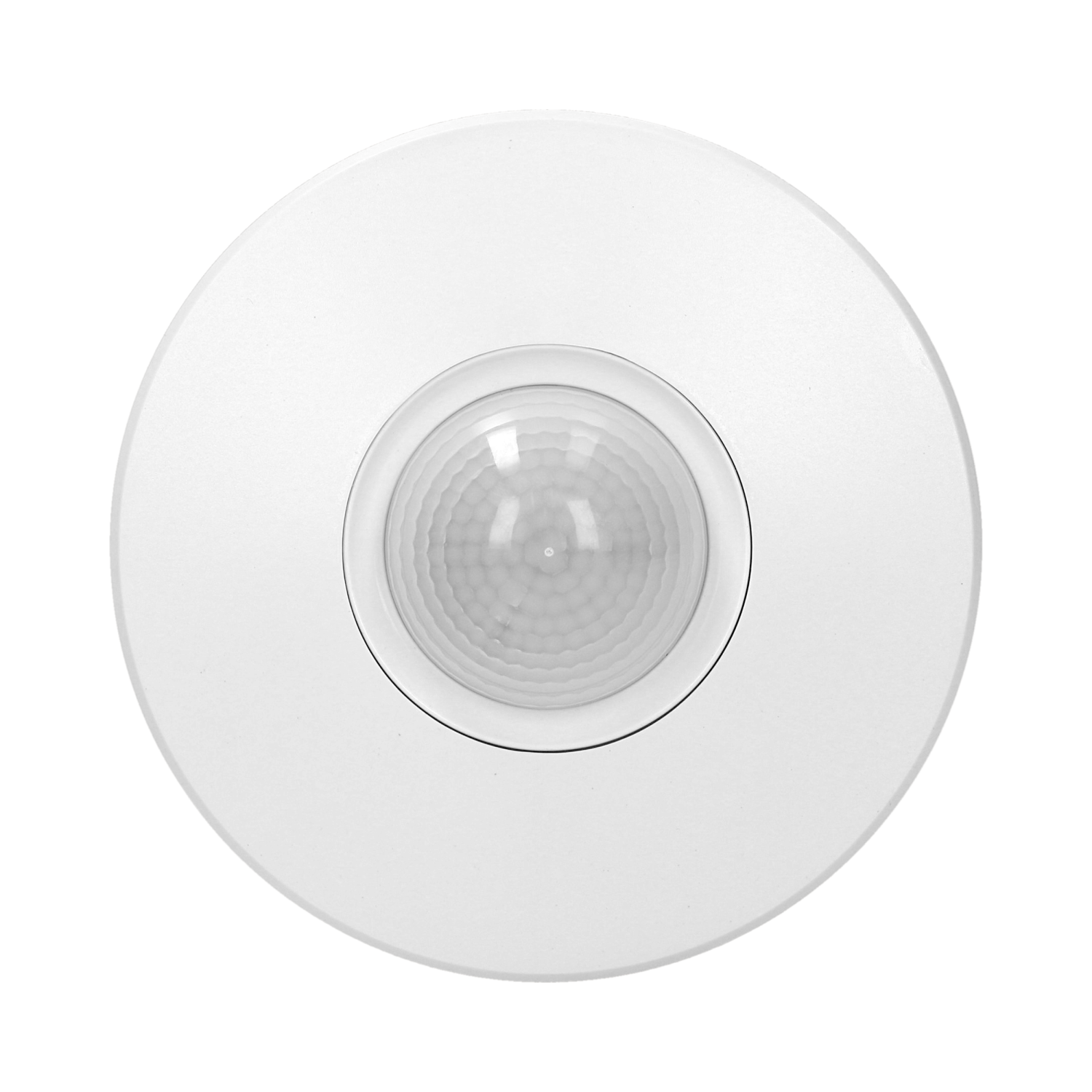

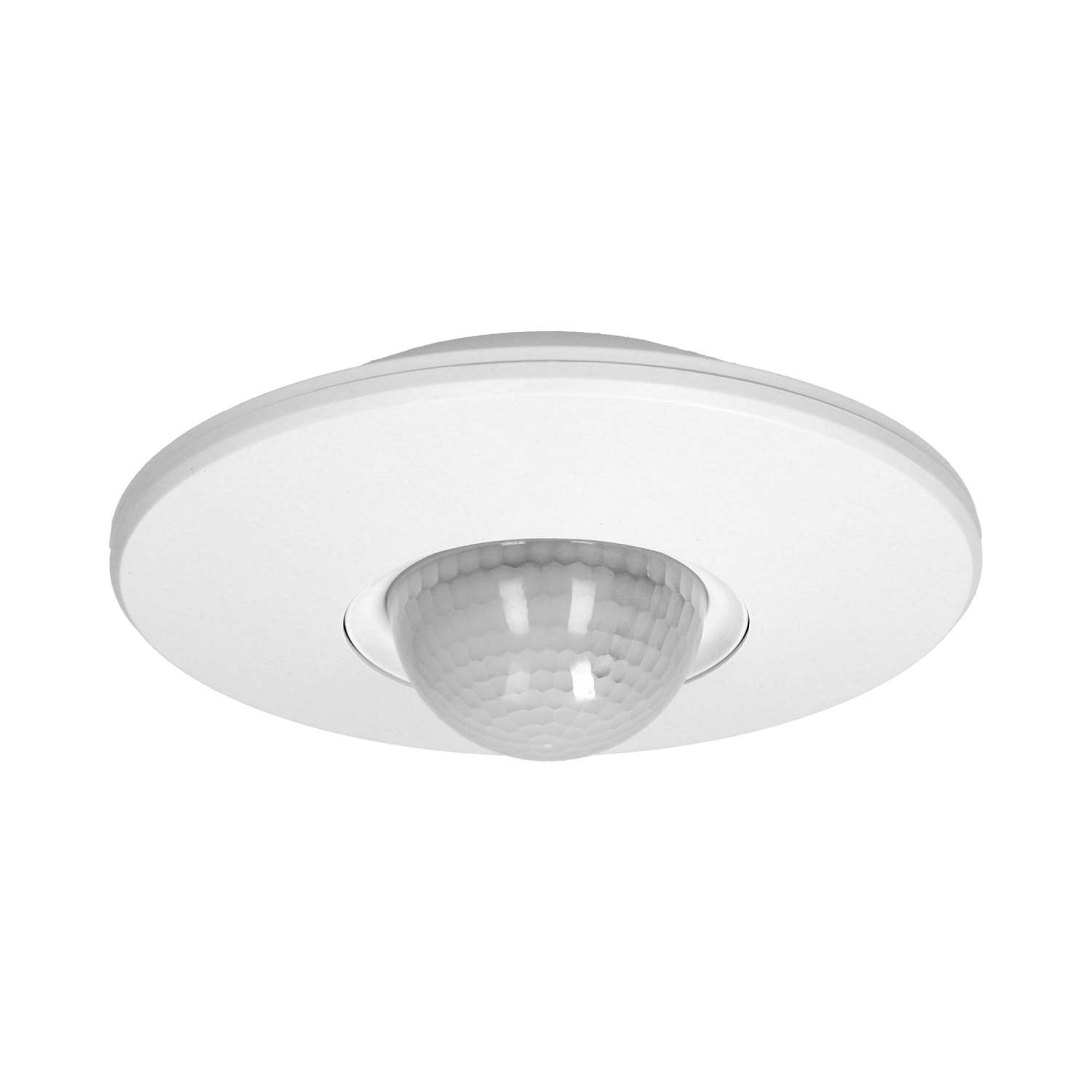

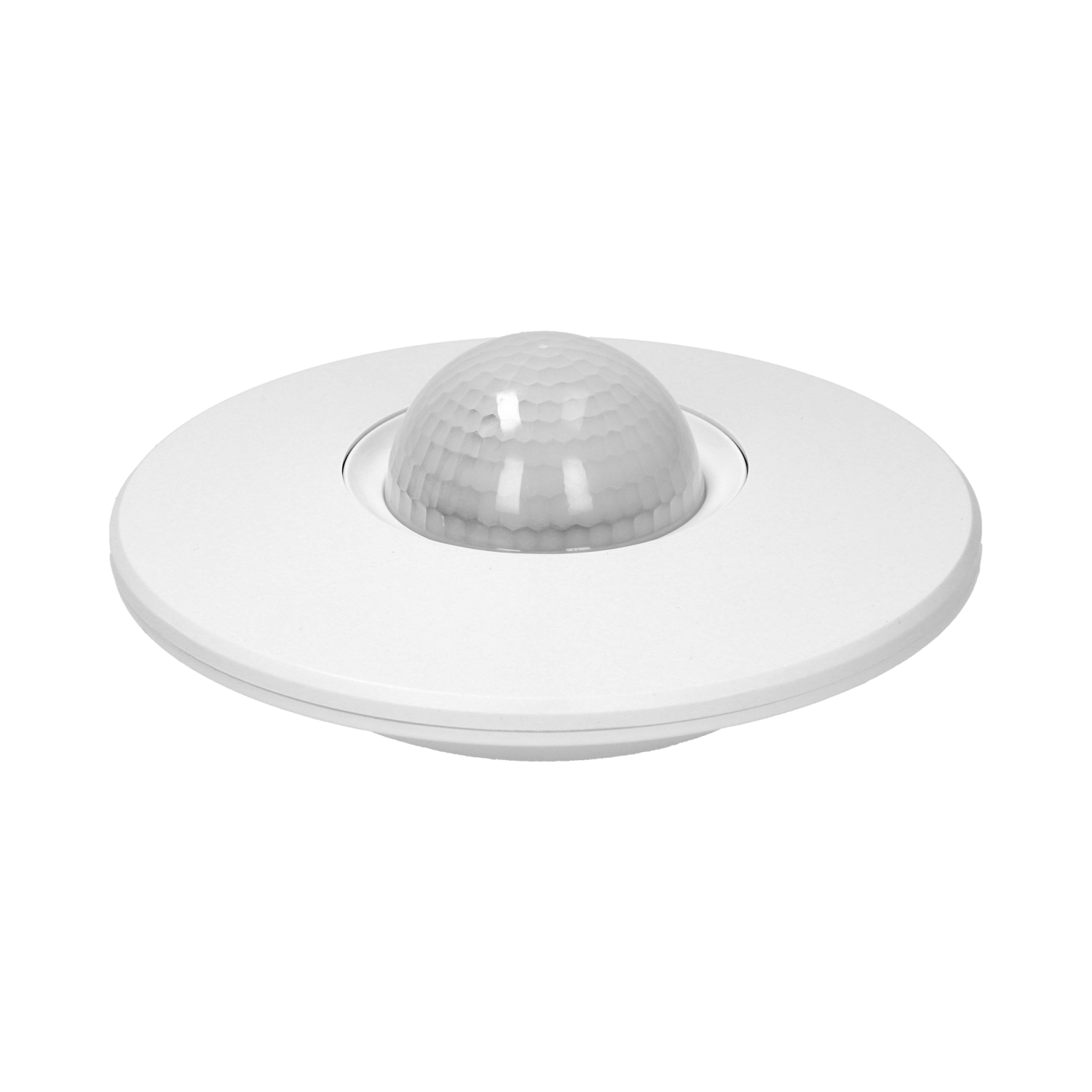

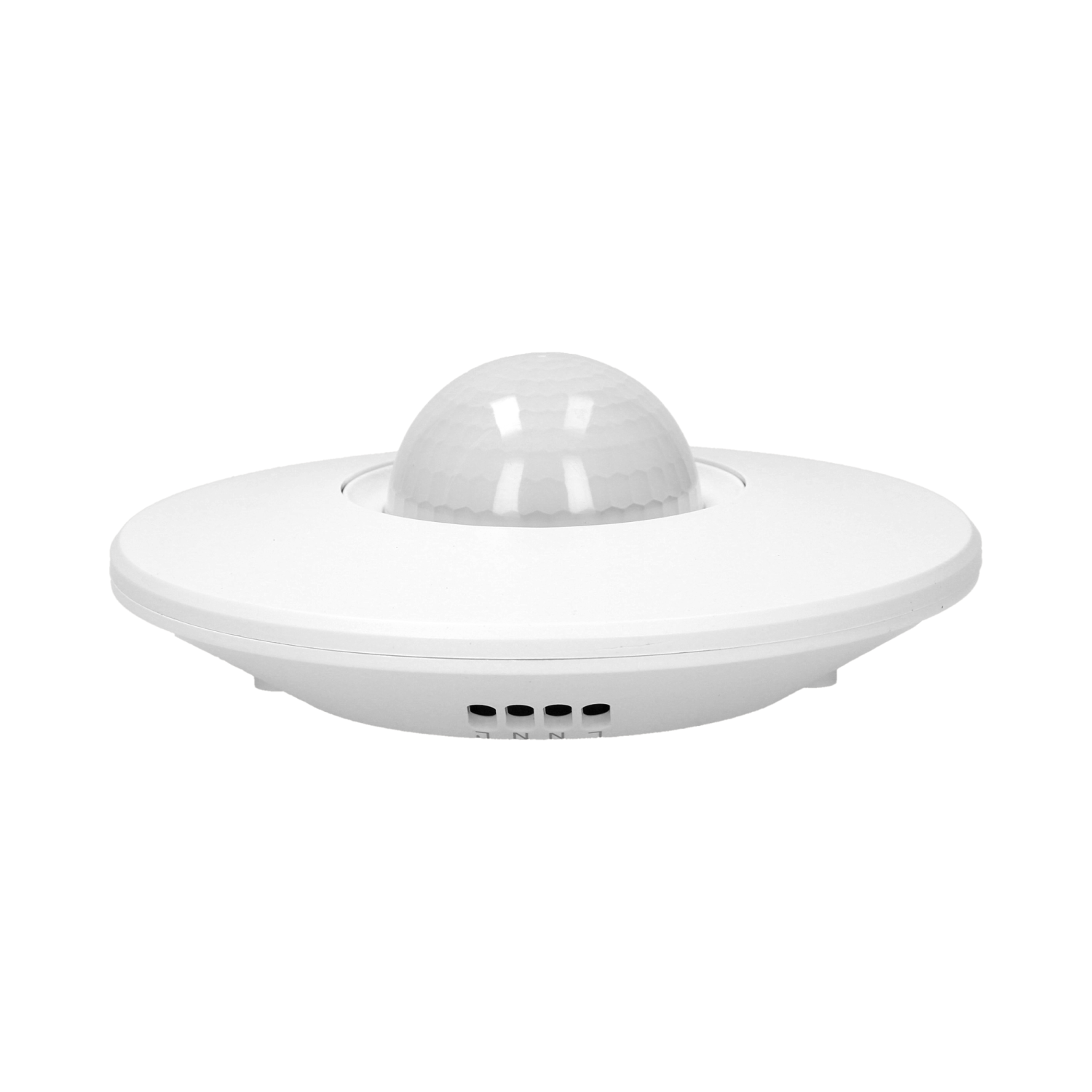

ORNO PIR motion sensor with 3 detectors, IP 20 360°

ORNO 140702 - PIR motion sensor with 3 detectors, IP 20 360°, ran ORNOR-CR-252

Passive infrared sensor For indoor usage Collaborates with LED lighting Regulation: lighting time (TIME), sensitivity of the light intensity (LUX) and range of motion detection (SENS).

General information:

• Max. load: 2000
• Max. load of the LED light source: 500 W
• Degree of protection (IP): 20
• Relay output: Yes
• Nominal voltage: 230V~, 50Hz
• Presence detector: No
• Colour: white
• Installation: surface mounting
• Dimensions of the sensor - width (mm): Ø120 mm
• Dimensions of the sensor - height (mm): Ø120 mm
• Dimensions of the sensor - depth (mm): 46.5 mm
• Detection angle: 360°
• Type of sensor: Infrared
• Detection range: Ø3-16 m
• Adjustable daylight sensor (LUX): Yes
• Daylight sensor adjustment range (LUX): <3—2000lux
• Adjustable time setting (TIME): Yes
• Lighting time adjustment range (TIME): min: 10 sek. ± 3 sek.; max: 30 min. ± 2 min.
• Adjustment of motion detection range (SENS): Yes
