ORNO MINI microwave motion sensor, IP20

ORNO 140471 - MINI microwave motion sensor, IP20 ORNOR-CR-216

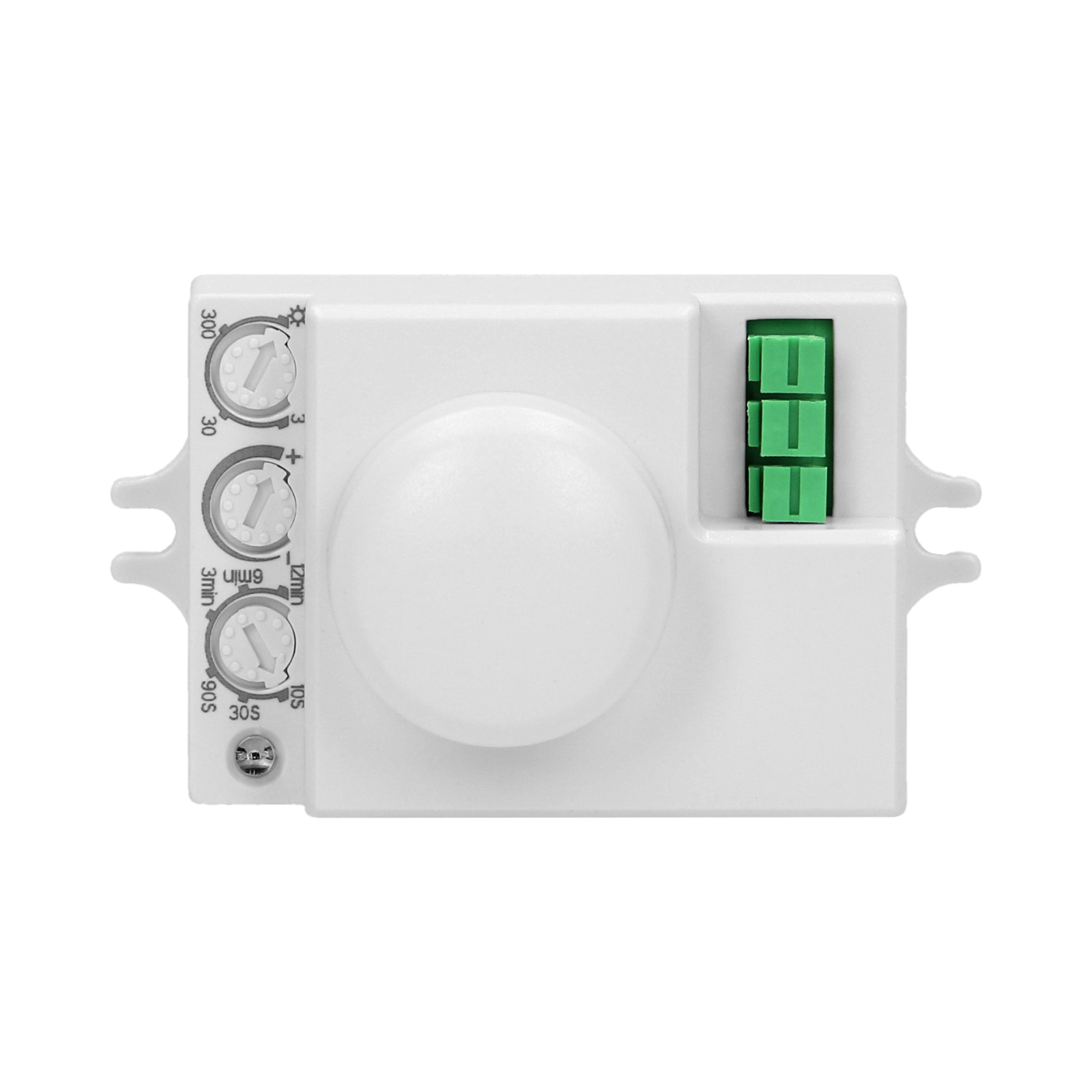

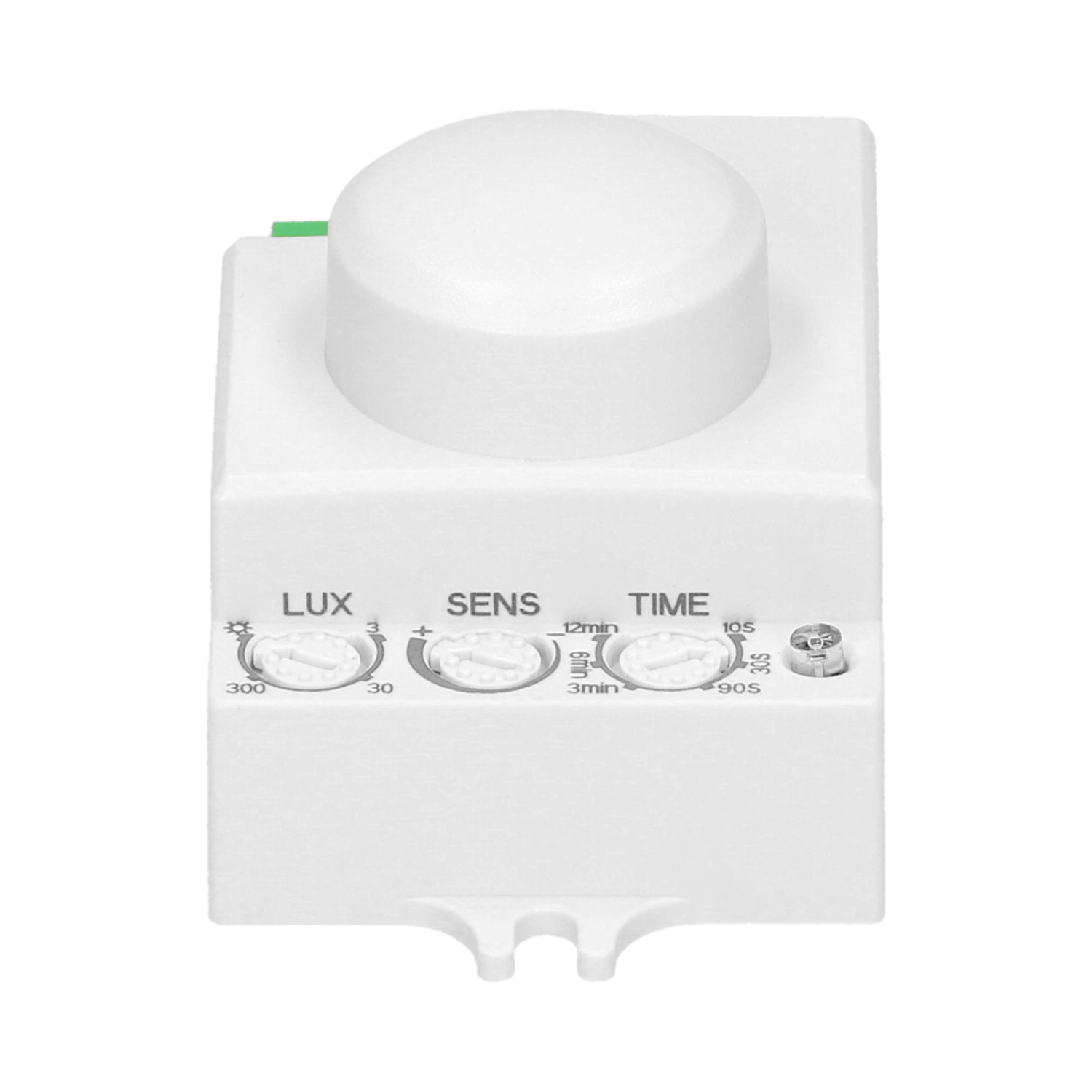

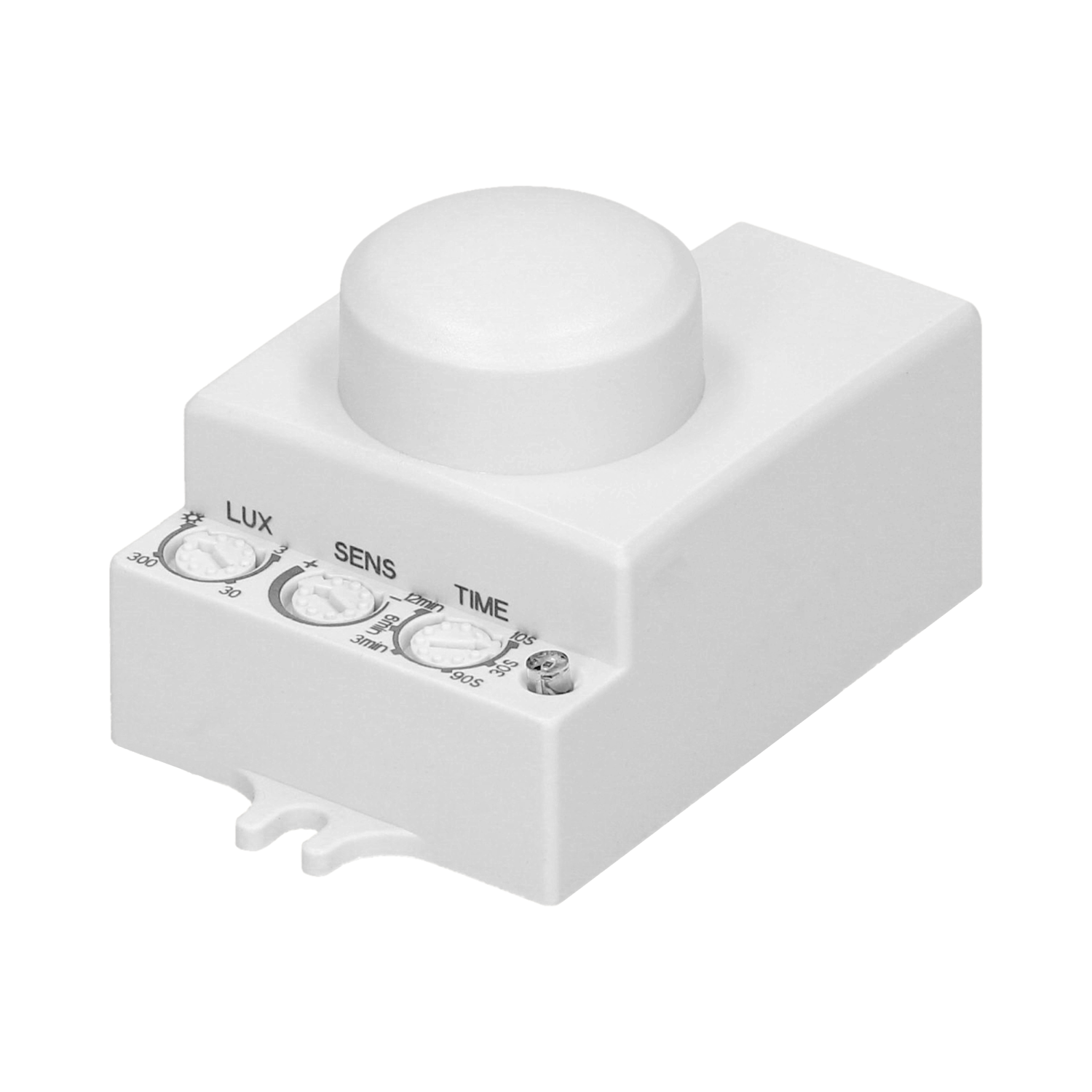

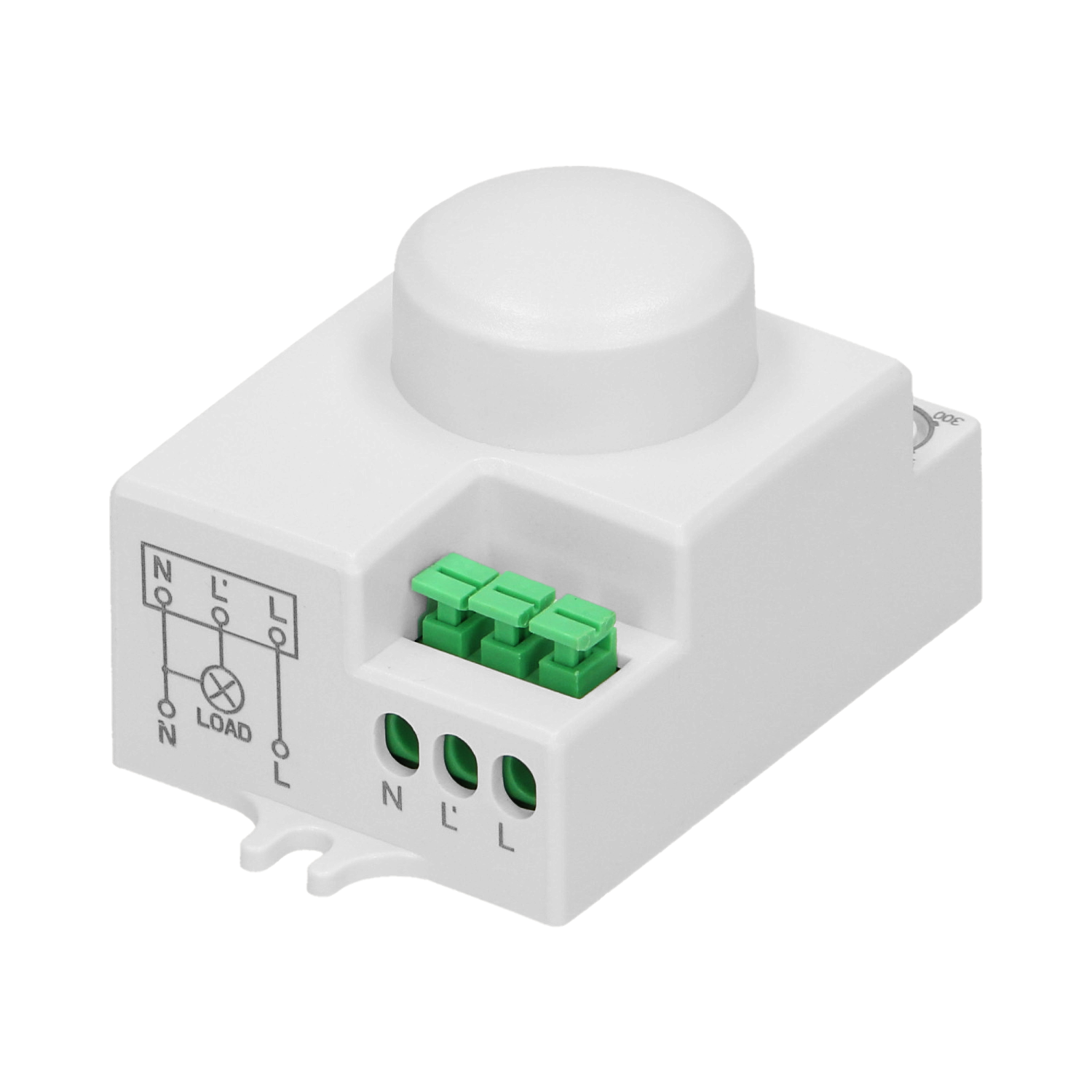

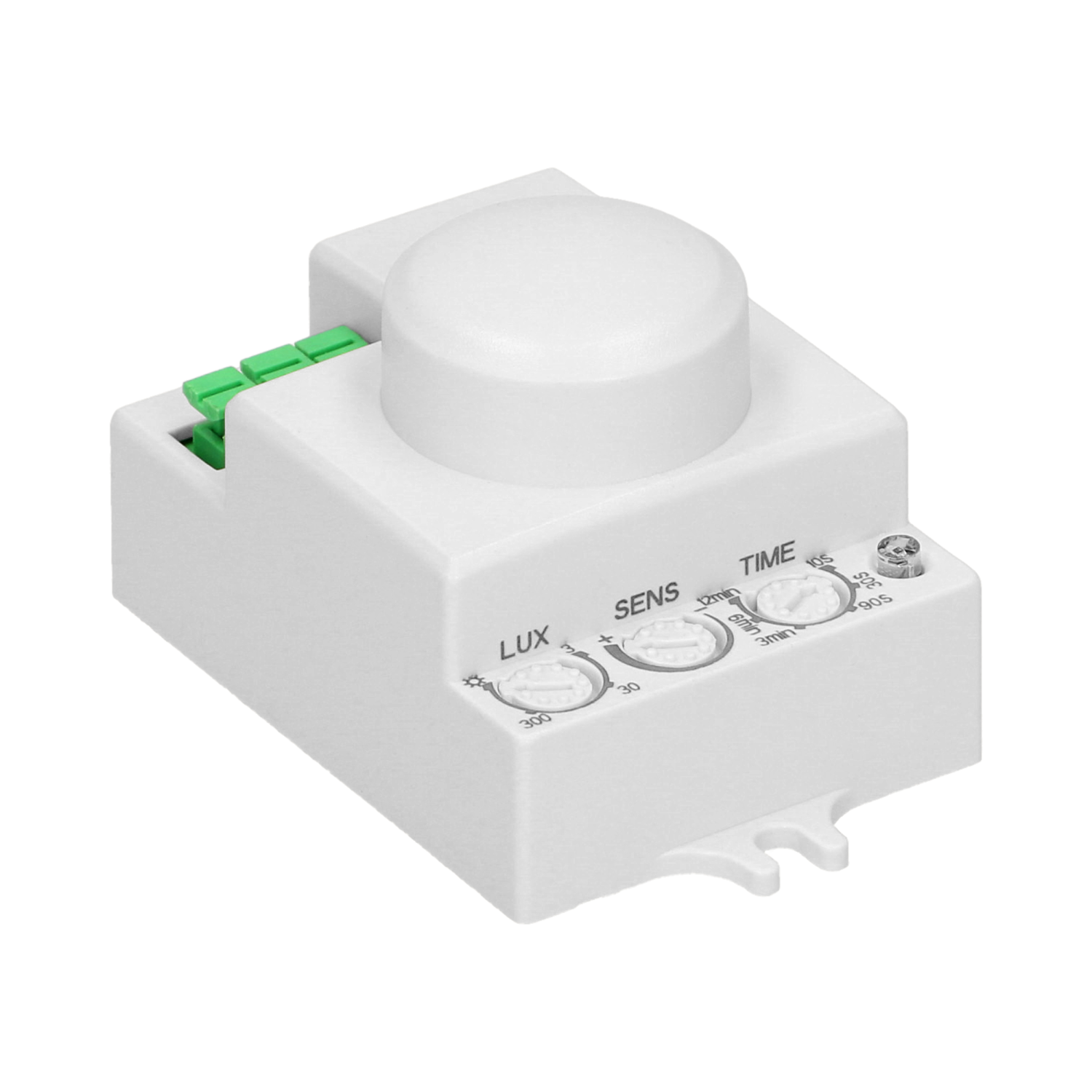

Microwave (radar) motion sensor with low power emission For indoor usage Collaborates with LED lighting Regulation: lighting time (TIME), the sensitivity of the light intensity (LUX) and the range of motion detection (SENS) Small size of the sensor allows the use in fixtures and luminaires Built-in twilight sensor and timer Temperature does not affect the detection.

General information:

• Max. load: 1200
• Max. load of the LED light source: 300 W
• Degree of protection (IP): 20
• Relay output: Yes
• Nominal voltage: 230V~, 50Hz
• Presence detector: No
• Colour: white
• Installation: surface mounting
• Dimensions of the sensor - width (mm): 39,4 mm
• Dimensions of the sensor - height (mm): 54,6 mm
• Dimensions of the sensor - depth (mm): 37.2 mm
• Working temperature: -20℃~+50℃
• Detection angle: 360°/180°
• Type of sensor: microwave
• Detection range: 1-8 m
• Adjustable daylight sensor (LUX): Yes
• Daylight sensor adjustment range (LUX): <3—2000lux
• Adjustable time setting (TIME): Yes
• Lighting time adjustment range (TIME): min: 10 sek. ± 3 sek.; max: 12 min. ± 1 min.
• Adjustment of motion detection range (SENS): Yes
