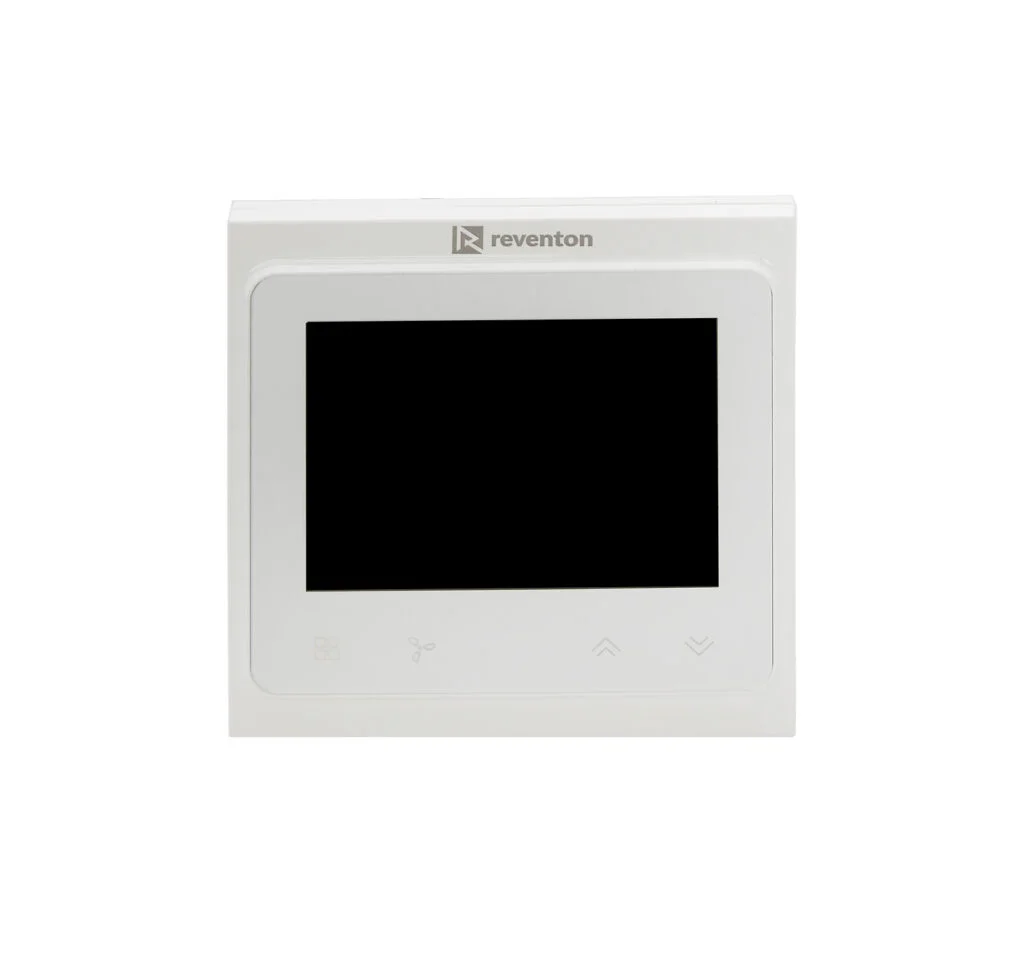

Reventon HMI Volt BMS-2502 EHU14 Programmeerbaar Kamerthermostaat
Artikelnummer: REVENTON050Reventon HMI Volt BMS-2502 EHU14 Prog. Kamerthermostaat HMI-VOLTBMS-2
The HMI VOLT programmable controller is designed to control the operation of fans and electric heaters in fan coil unit applications. The device automatically regulates system operation based on a comparison between room temperature and the setpoint temperature, ensuring thermal comfort and energy efficiency. It supports heating, cooling, and ventilation modes. The controller features a large backlit LCD screen, touch buttons, and allows weekly scheduling with six time periods per day. It is compatible with both internal and external temperature sensors (external sensor included) and supports RS485 communication using the Modbus RTU protocol, enabling integration with Building Management Systems (BMS).
- Power / Frequency: 230V AC / 50-60Hz
- Maximum current load of fan: 5 A (inductive)
- Maximum current load of L1&L2: 5 A (inductive)
- Working conditions: 0 ° -45 ° C
- Regulation range: 5 ° -35 ° C
- Regulation accuracy: +/- 0.5 ° C
- External temperature sensor: NTC 10K
- Data Transmission Standard (BMS): RS485
- Enclosure with protection degree: IP 20
- Dimensions: 86 x 86 x 13.3 mm
- Weight: 0.27 kg
