Afriso Aanlegthermostaat 0-90ºC met buitenvoeler GAT/7RC 67401X

Name: Afriso Aanlegthermostaat 0-90ºC met buitenvoeler GAT/7RC 67401X
SKU: INSTAL670

Artikelnummer: INSTAL670

€ 22,³³ (exclusief btw)

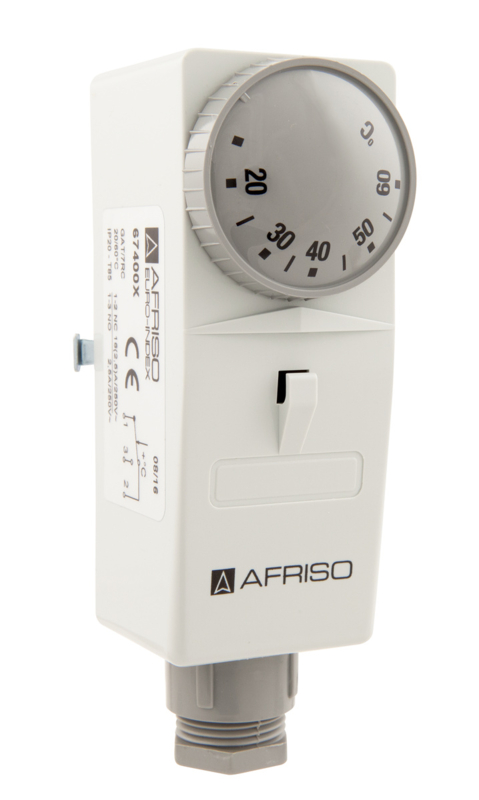

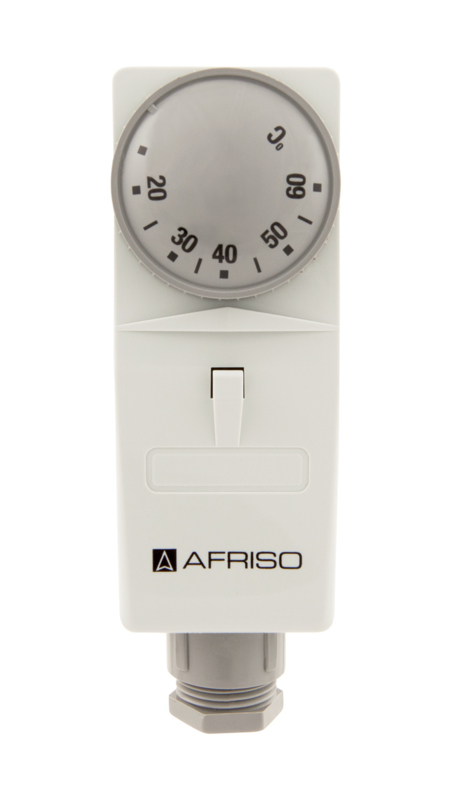

Afriso Aanlegthermostaat 0-90°C met buitenvoeler GAT/7RC 67401X

The surface mounting thermostat us a bimetal strip (element consisting of two metal strips with different heat expansion coefficients). When the temperature changes, the bimetal strip bends which triggers electrical switching.

Mechanical temperature controller
Ideal for underfloor heating systems
Temperature limitation at pipes
Easy installation with strap

Application

Surface mounting thermostat for strap mounting at pipes from 16 to 100 mm diameter. The version with internal adjustment and temperature control range up to 60 °C is specially suited for underfloor heating systems.

Technical Data
Type GAT	Housing Upper part: Plastic (PVC), grey (RAL 7035) Base plate: Steel, galvanised
Operating range See ordering table	Cable entry Plastic (PVC), black M20 x 1.5
Tolerance +2 K/-8 K	Degree of protection IP 20 (EN 60529)

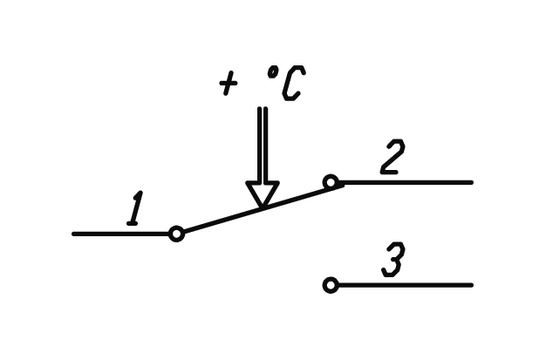

Switching differential ∆T 8 ± 3 K	Electrical switching contact Changeover contact
Setting GAT/7HC: Internal GAT/7RC: External	Contact rating NC: AC 250 V, 16 (2.5) A NO: AC 250 V, 2.5 A
Probe element Bimetal
Operating temperature range Housing: Max. 85 °C
