Afriso Manometer 0-4 Bar Achter 1/4" - Ø50mm 63927
Artikelnummer: INSTAL329Afriso Manometer 0-4 Bar Achter 1/4" - Ø50 mm 63927
- With self-sealing connection thread (NG 50 and 63) for fast mounting
- Red maximum mark on dial
- Adjustable red reference pointer and green operation segment on window
- Corrosion-resistant housing
Application
- For gaseous and liquid media which are not highly viscous, do not crystallise and do not attack copper alloys and EPDM.
| Technical Data | |
| Nominal size 63 | Operating temperature range Medium: Max. 60 °C Ambient: -20/+60 °C |
| Accuracy class (EN 837-1/6) 2,5 | Temperature performance Indication error when the temperature of the measuring system deviates from the normal temperature of 20 °C:
|
| Ranges 0/4 bar | Application area Static load: ¾ x full scale value Dynamic load: ⅔ x full scale value Short-term: Full scale value |
| Standard Design | |

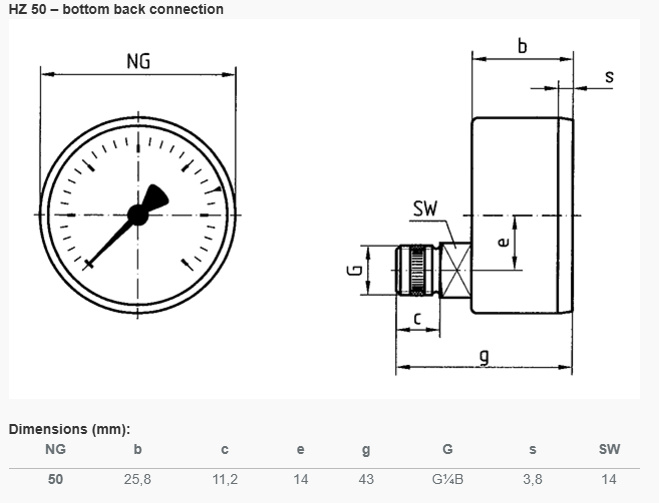

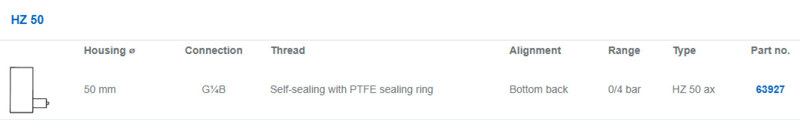

| Connection Bottom Back (63927) NG 50:
| Dial Plastic, white With red mark at 3 bar and green sector from 1.5 to 3 bar, With red mark at 2.5 bar and green sector from 1.5 to 2.5 bar Scaling black |
| Measuring element Bourdon tube, "C" type tube Copper alloy | Pointer Plastic, black |
| Movement Brass | Housing Plastic (ABS), black, highly impact-resistant and corrosion-resistant |
| Window Plastic, clipped in With adjustable red reference pointer and green flag | |
