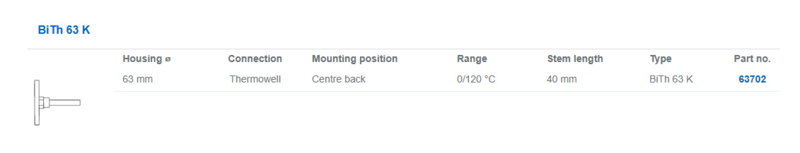

Afriso Thermometer 0-120º Achter 1/2" - Ø63mm - L = 40mm 63702
Artikelnummer: INSTAL674Afriso Thermometer 0-120° Achter 1/2" - Ø63 mm 63702

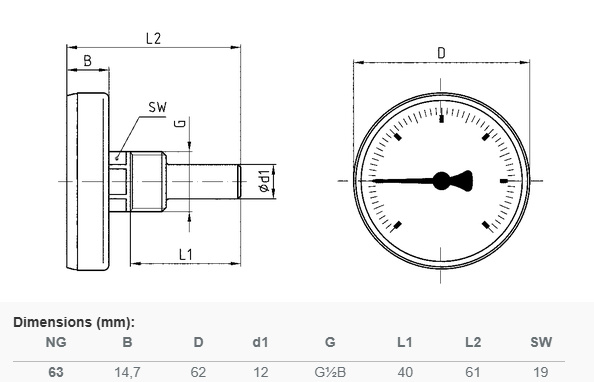

| Technical Data | |
| Nominal size 63 | Range °C 0/120 |
| Measuring element Bimetal helix | Application area Full scale value |
| Accuracy class 2 (EN 13190) | Operating pressure at thermowell Max. 6 bar |
| Standard Design | |
| Connection Stem: Brass or aluminium, ∅ 9 mm Thermowell: G½B, Brass, ∅ 12 mm, removable Stem length 40 mm with optional self-sealing thread with PTFE sealing ring | Pointer Plastic, black |
| Mounting position Centre back | Housing ABS, black |
| Dial Plastic, white Scaling black | Window Plastic, clipped in |
